Scooter Rc Drone Brushless Motor , Aeromodelling Helicopter Toy Motor

Minimum Order Quantity : 20 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 10000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: ISO9001 Model Number: BLS-5045

Detail Information

Work Voltage: 11.1V-36V Motor KV: 270KV-320KV Or Custom
Free Load Current: 1.5A-1.6A Rated Torque: 1-2.5N.m
Max Power: 2300W Output Shaft: 6*30mm
Motor Dimension: 50*48mm Typical Application: Skateboard, Scooter, E-scooter
High Light:

Outer Rotor BLDC Motor for Skateboard


Outer Rotor BLDC Motor for Scooter


Aeromodelling Helicopter Toy Motor

Product Description

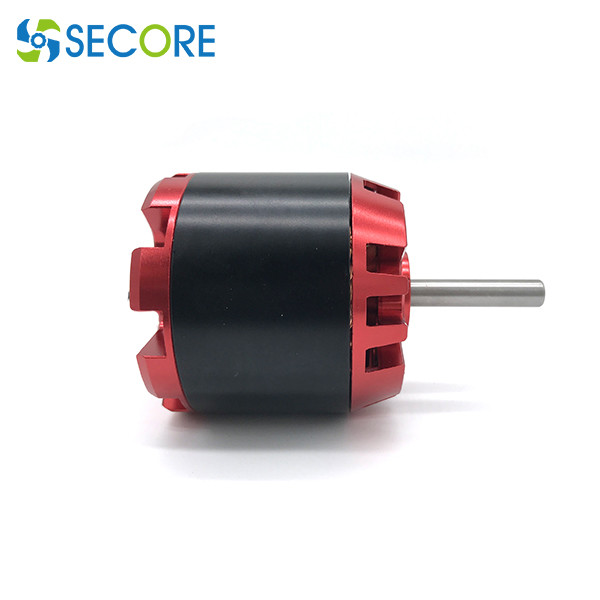

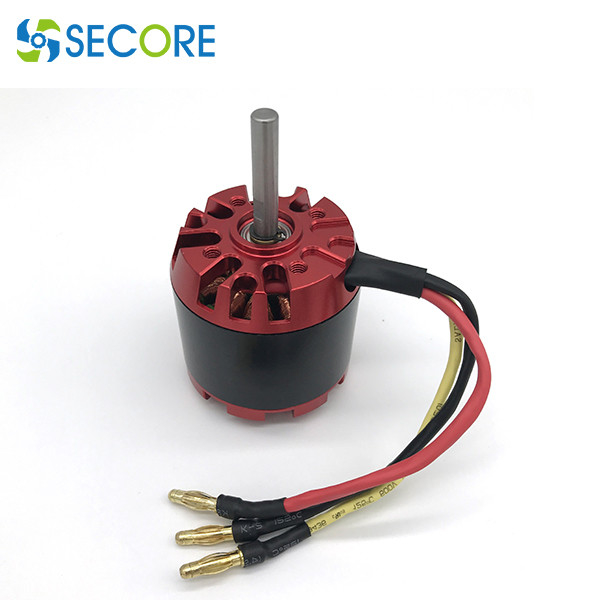

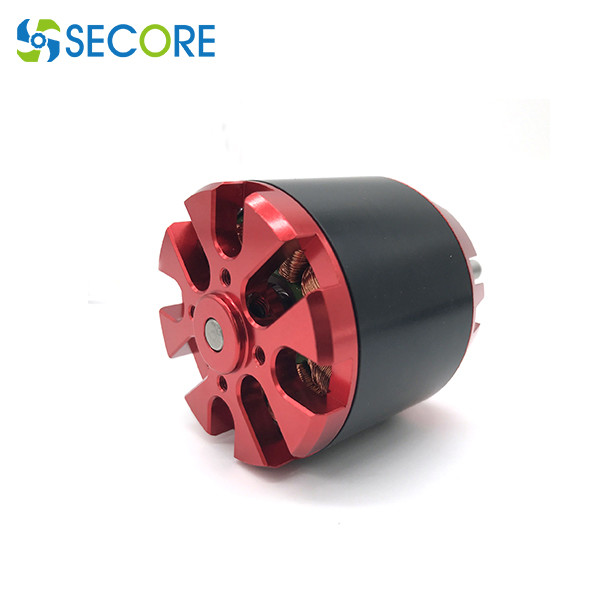

Scooter Rc Drone Oxygen-free Brushless Motor Aeromodelling Helicopter Toy Motor Customization


Specification of Secore BLS5045 Brushless outrunner Motor for Aeromodelling / helicopter toy :


    Scooter Rc Drone Brushless Motor , Aeromodelling Helicopter Toy Motor 0 Product name RC aircraft motor, aeromodelling motor
Model # BLS-5045
Rated voltage 11.1v-36v
Diameter*Length 50*45MM
Rated power 2300W
hall angle 60
Poles 14P
Weight 0.33kg



Top and bottom covers: 6063-T6 aluminum alloy, Insulating, non-conducting, anodized, very fine heat-resistance.
Case: Made of electroplating steel pipe, featured corrosion resistance, high wear resistance.
Magnet material: NdFeB N45SH, 14 poles, strong magnetism.
Copper wirehigh temperature resistance and high purity oxygen-free copper wire, can withstand 220 ℃ temp.
Silicon steel: thickness can be 0.2mm, the thinner the silicon wafer, the less motor consumption
