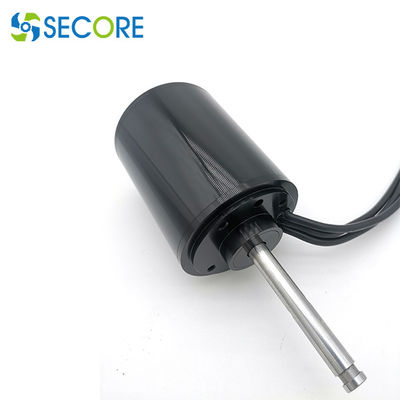

DC 36V Waterproof Electric Motor 10S Underwater Jet Motor Brushless Motor

Minimum Order Quantity :	200	Price :	Negotiated The Price
Packaging Details :	500pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T	Supply Ability :	30000PCS / month

Place of Origin:	Shenzhen	Brand Name:	SECORE
Certification:	CE RoHS	Model Number:	BLE-7092

Detail Information
Working Voltage:	36-48V Compatible	Working Current:	25-30A
KV Value:	160-250KV	Propeller Dia:	110-190mm
Working Depth:	Underwater 50M	Thrust:	44-55lb
Ingress Protection:	IP68	Application:	Water Sports Device, Uuv, Electric Boat
High Light:	DC 36V Waterproof Electric Motor , IP68 Waterproof Electric Motor , Brushless Underwater Jet Motor

Product Description

55LB Waterproof Electric Motor DC 36V 10S Underwater Jet Motor Brushless Motor

Main features:

Motor Model number	BLE-7092	Dimension	7092mm ( diameter length )
Motor name	5 hp waterproof motor	Rotor	outer rotor
Motor type	brushless motor	Protection level	IP68
Voltage Range	36V-48V compatible	Rated Current	25-30A
KV value	160kv-250KV	rotation thrust	44lb-55lb
Propeller diameter	110-190mm	feature	anti-water, anti-sand, anti-crystallization
Thrust	20-25kg	rotation	CW / CCW

Outline dimensions for 7092 water motor:

DC 36V Waterproof Electric Motor 10S Underwater Jet Motor Brushless Motor 0

DC 36V Waterproof Electric Motor 10S Underwater Jet Motor Brushless Motor 1

Typical application:

Provide Solutions of Waterproof Motors For water related devices, custom made from 12V-72V, 500W to 20000W, such as water scooter, underwater scooter, hydrofoil wave device, trolling motor, ROV, UUV etc.
