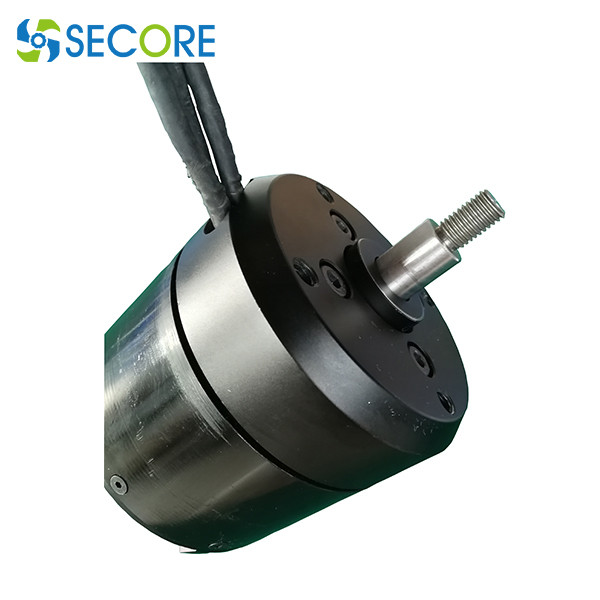

15000W Waterproof Brushless Motor Sensored Sensorless 20HP BLDC Motor For Paraglider

Contact Now

15000W Waterproof Brushless Motor Sensored Sensorless 20HP BLDC Motor For Paraglider

Minimum Order Quantity :	5	Price :	Negotiated The Price
Packaging Details :	20pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T	Supply Ability :	10000PCS / month

Place of Origin:	China	Brand Name:	SECORE
Certification:	CE RoHS	Model Number:	BL-12140

Detail Information
Rated Voltage:	48-72or Custom	Rated Power:	20HP ( 15000W )
Peak Power:	26HP	Continuous Current:	220-250A
Peak Current:	350A ( 5S )	IP Protection:	IP68
Speed:	7000 To 10000RPM	Application:	Paraglider, Snowfield Tank
High Light:	15000W Waterproof Brushless Motor , High Power Waterproof Brushless Motor , 20HP Brushless Bldc Motor

Product Description

High Power Sensored Sensorless Brushless Motor 15000W 20HP Bldc Motor For Paraglider

Water-cooling circulation system built-in brushless sensored sensorless motor parameters:

Motor Model #	E12140	Motor Dimension	120140mm ( diameter length )
Protection level	IP68	type	outrunner brushless motor
Application case	Paraglider	Speed	7000rpm to 10000rpm
Voltage Range	48-72V compatible	Continuous Current	220-250A
Power	15000W /20hp	Peak Power	20000W / 27hp

Dimensions:

15000W Waterproof Brushless Motor Sensored Sensorless 20HP BLDC Motor For Paraglider 2

15000W Waterproof Brushless Motor Sensored Sensorless 20HP BLDC Motor For Paraglider 3

Typical application:

Brushless motor for electric windsurfing board, paraglider, water surfing board motor, snow tank and other products. The maximum power is 20000W, suitable for water electric motorcycles and various water special products motors

15000W Waterproof Brushless Motor Sensored Sensorless 20HP BLDC Motor For Paraglider 4

waterproofing motor for rc boat	brushless motor for unmanned boat
waterproof motor for drone	waterproof brushless motor for kayak
waterproof motor for auv	waterproof brushless motor for swimming pool
waterproof motor for rov	waterproof brushless motor for Paraglider
waterproof motors for rc robot	waterproof brushless motor for drone
