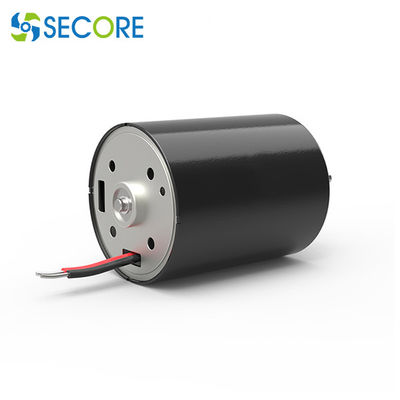

Built In Driver Micro Bldc Motor , 30mm Speed Control Brushless Pump Motor

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: RoHS Model Number: BLS-3038

Detail Information

Dimensions: OD30*L38(mm) Speed Rated: 5250rpm
Free Load Speed: 5700rpm Rated Torque: 4.9mN.m (50gf.cm)
Rated Current: 0.4A Stall Torque: 0.434lb.in
Type: Built-in Driver Brushless Motor Typical Application: Water Pump, Oil Pump, Peristaltic Pump
High Light:

Built In Driver Micro Bldc Motor

,

0.4A Micro Bldc Motor

,

30mm Brushless Pump Motor

Product Description

Built-In Driver Mirco Bldc Motor 30mm Speed Control Brushless pump Motor Custom made



30*38 12v miniature pump motor:

  • size:36*50mm;
  • high speed rotation: 18000rpm
  • low noise, low EMI, long lifetime;
  • CW & CCW, Signal function available;
  • Locked rotor protection, Stepless speed regulation.
  • driver inside the motor



Model number VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY Stall
Nominal constant SPEED CURRENT SPEED CURRENT TORQUE Current torque
Volts ±10% r/min mA ±10% r/min mA gf.cm/mN.m/lb.in A gf.cm/mN.m/lb.in
BLS-3038 12 5700 160 5250 400 50/4.9/0.434 2.1 500/49/0.434


Dimension of the brushless motor:


Built In Driver Micro Bldc Motor , 30mm Speed Control Brushless Pump Motor 0



Brushless motor features:

Built In Driver Micro Bldc Motor , 30mm Speed Control Brushless Pump Motor 1
