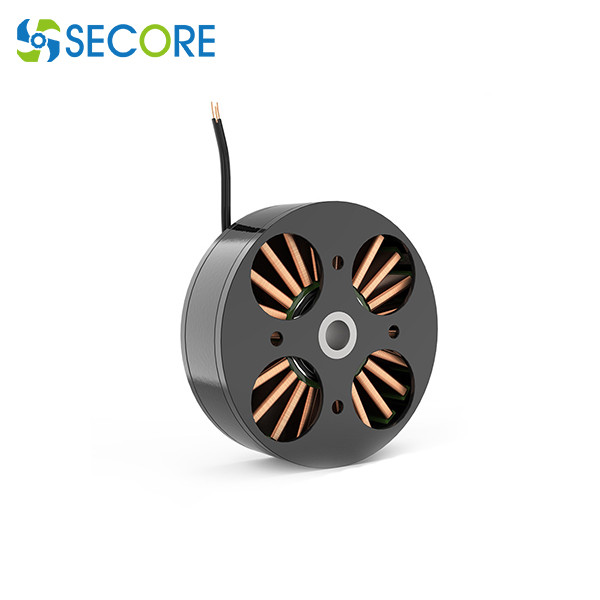

Three Axis Gimbal Brushless Motor , 11.1v 24v Outrunner Bldc Motor For Video Selfie

Name: Three Axis Gimbal Brushless Motor , 11.1v 24v Outrunner Bldc Motor For Video Selfie
Brand: SECORE
SKU: BLS-4614
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (177 reviews)

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	50pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Shenzhen	Brand Name:	SECORE
Certification:	RoHS	Model Number:	BLS-4614

Detail Information
Dimensions:	OD46.2*L14（mm）	Speed Rated:	800rpm
Free Load Speed:	1040rpm	Rated Torque:	31.36mN.m (320gf.cm)
Rated Current:	360mA	Stall Torque:	203.84mN.m (1.805lb.in)
Type:	11.1V External Rotor Brushless Motor	Typical Application:	Three-Axis Gimbal, Video Selfie
High Light:	11.1v Gimbal Brushless Motor , 24v Gimbal Brushless Motor , Video Selfie Outrunner Bldc Motor

Product Description

Three-Axis Gimbal Brushless Motor 11.1v 24v Outrunner Bldc Motor For Video Selfie

4614 11.1v brushless motor:

Motor type	brushless motor	Model number	BLS-4614
Dimension (od*length)	46.2mm * 14mm	Shaft diameter	8.0mm
Rated voltage	11.1, 12, 24V	Bearing type	Ball bearing
Efficiency	75% above	Noise	≤45dB
Function: 1.CW&CCW 2.PWM speed adjustment 3.Start/stop 4. FG signal
Protection: 1.over-current 2.over-heat

Model number	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY			Stall
	Nominal constant	SPEED	CURRENT	SPEED	CURRENT	TORQUE	Current	torque
	Volts	±10% r/min	mA	±10% r/min	mA	gf.cm/mN.m/lb.in	A	gf.cm/mN.m/lb.in
BLS-4614I	11.1	1040	90	800	360	320/31.36/0.2778	1.8	2080/203.84/1.805

Dimension of the 4614 brushless motor:
Three Axis Gimbal Brushless Motor , 11.1v 24v Outrunner Bldc Motor For Video Selfie 0

Performance curve for reference:

Three Axis Gimbal Brushless Motor , 11.1v 24v Outrunner Bldc Motor For Video Selfie 1
