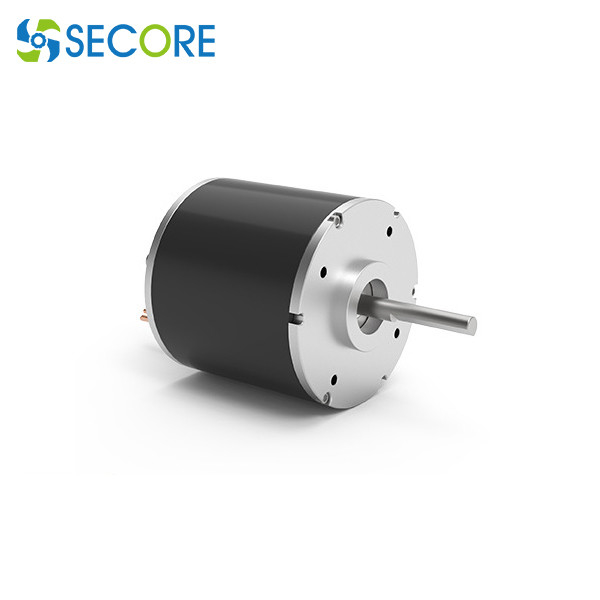

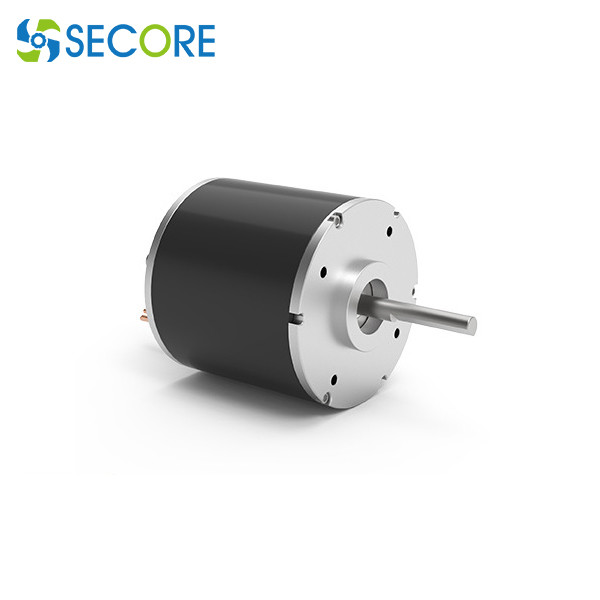

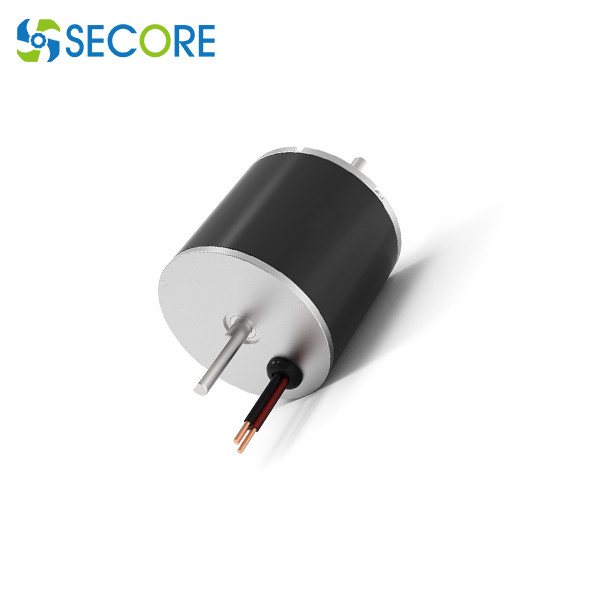

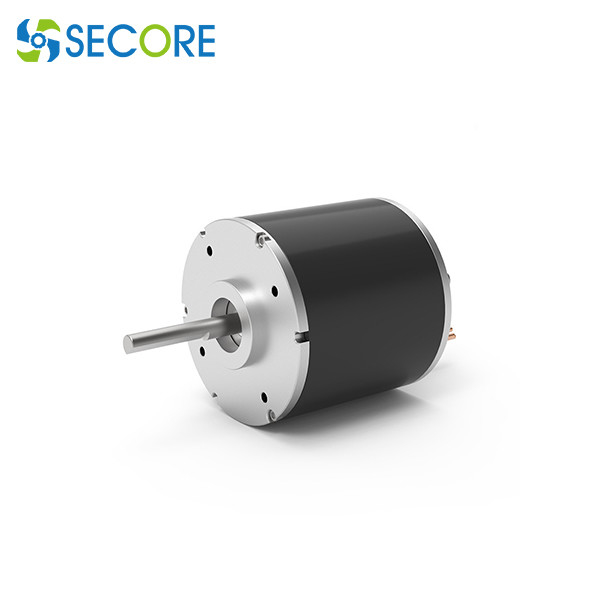

50mm Valve Brushless 12v 36v Dc Bldc Motor For Industrial Air Pump
50mm Valve Brushless 12v 36v Dc Bldc Motor For Industrial Air Pump 50mm Valve Brushless 12v 36v Dc Bldc Motor For Industrial Air Pump 50mm Valve Brushless 12v 36v Dc Bldc Motor For Industrial Air Pump
Contact Now

50mm Valve Brushless 12v 36v Dc Bldc Motor For Industrial Air Pump

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: RoHS Model Number: BLS-5047

Detail Information
Sizes (dia*len): 50*47mm Speed Rated: 2560rpm
Free Load Speed: 3000rpm Rated Torque: 1.05kgf.cm ( 14.583oz.in )
Rated Current: 3000mA Stall Torque: 3.0kgf.cm ( 41.667oz.in )
Type: Dc Brushless Valve Motor Typical Application: Solenoid Valve, Air Pump
High Light:

Valve Micro BLDC Motor

,

36v Dc Bldc Motor

,

Industrial Air Pump Micro BLDC Motor

Product Description

50mm Valve Brushless Motor 12v 36v Dc Bldc Motor For Industrial Air Pump



50*47 12v brushless motor:



Model number VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY Stall
Nominal constant SPEED CURRENT SPEED CURRENT TORQUE Current torque
Volts ±10% r/min mA ±10% r/min mA kgf.cm/oz.in A kgf.cm/oz.in
BLS-5047I 12 3000 260 2560 3000 1.05/14.583 8 3/41.667


Dimension of the 4614 brushless motor:
50mm Valve Brushless 12v 36v Dc Bldc Motor For Industrial Air Pump 0

Performance curve for reference:


50mm Valve Brushless 12v 36v Dc Bldc Motor For Industrial Air Pump 1
