Fully Enclosed Waterproof Brushless Motor 2Nm Anti Corrosion Out Rotor Motor

Name: Fully Enclosed Waterproof Brushless Motor 2Nm Anti Corrosion Out Rotor Motor
Brand: SECORE
SKU: BLS6363
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (152 reviews)

Minimum Order Quantity :	50	Price :	Negotiated The Price
Packaging Details :	100pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, L/C, D/P	Supply Ability :	13000PCS / month

Place of Origin:	Shenzhen, Guangdong	Brand Name:	SECORE
Certification:	ISO9001	Model Number:	BLS6363

Detail Information
Working Voltage:	24-36V Compatible	KV Value:	200KV-300KV
Rated Torque:	1.5-2N.m	Max Current:	120A
Free Load Current:	0.5-1A	IP Level:	IP68 Protection
Max Power:	2000W	Application:	Underwater Device
High Light:	Fully Enclosed Waterproof Brushless Motor , 2Nm Waterproof Brushless Motor , fully enclosed bldc motor

Product Description

Fully Enclosed Waterproof Brushless Motor 2N.m Anticorrosion Out Rotor Motor

Key parameters:

Motor Model number	BLS-6363	diameter * length	63*63mm
Motor Model number	BLS-6363	diameter * length	63*63mm
Motor type	brushless motor	Rotor	external rotor
Motor Name	fully enclosed bldc motor	Hass sensor	no ( optional )
Voltage Range	24V	KV(RPM/V)	200kv
free load current	1A	Max current	120A
Max power	2000W	weight	794g

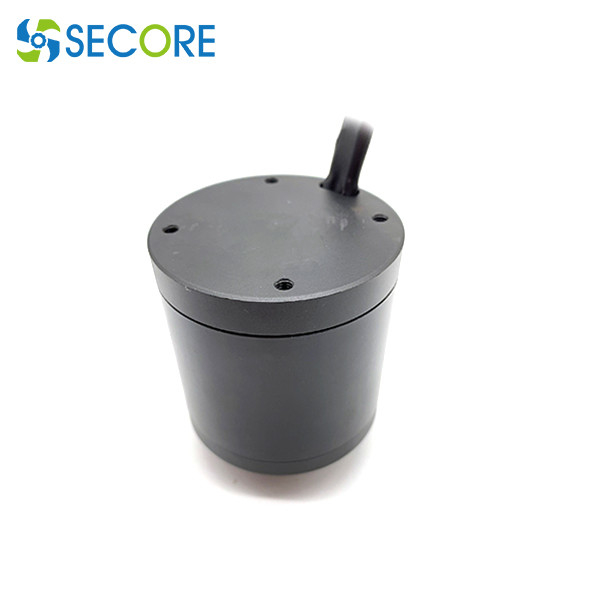

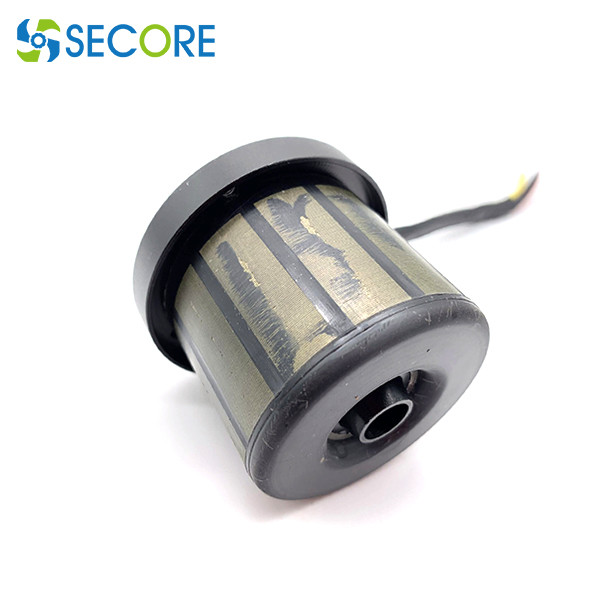

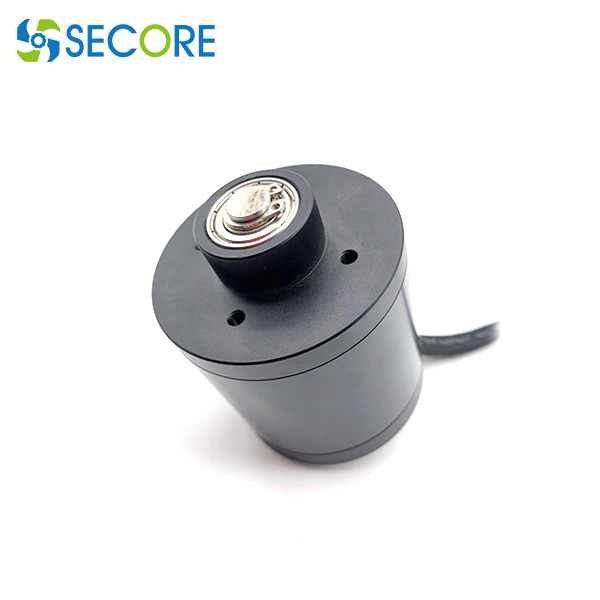

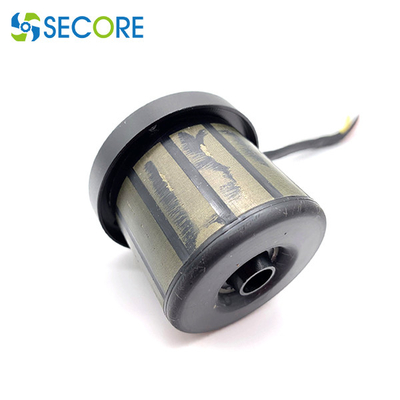

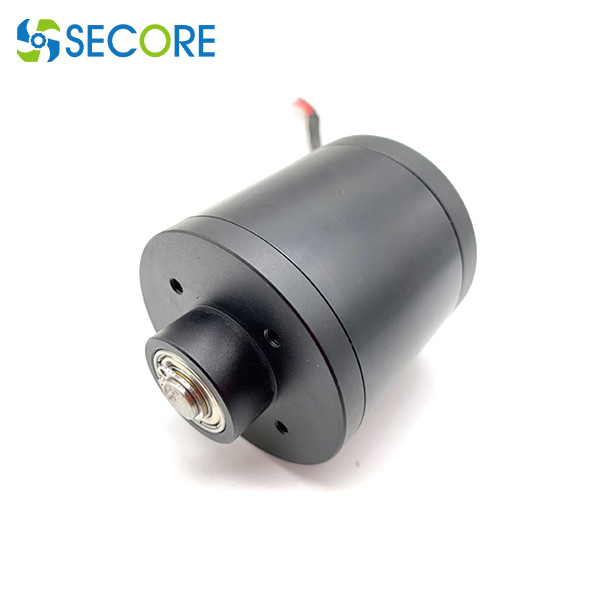

Fully Enclosed Waterproof Brushless Motor 2Nm Anti Corrosion Out Rotor Motor 0

Fully Enclosed Waterproof Brushless Motor 2Nm Anti Corrosion Out Rotor Motor 1

Features:

The motor adopts patented mechanical enclosed waterproof process, which can effectively prevent water, anticorrosion. ( Also can customize salt waterproof motor which prevent salt crystallization and sediment ). The motor housing uses 6061 aluminum alloy (anodizing process) + stamping hardware shell (electrophoresis process), the bearing is NSK bearing, and the magnet is sintered NdFeB.
