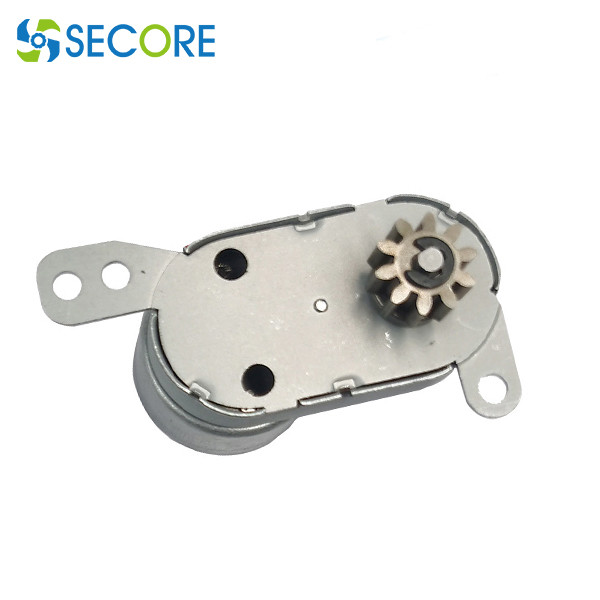

300rpm Micro Valve Gear Motor Door Lock Gear Motor Password Locker Motor For School

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 7-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen, Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: DC-2434GM

Detail Information

Model Number: DC-2434GM Operating Voltage: 6V
Gear Reducer Length: 24.1*50mm Motor Dimension: 24.4*12.4mm
Commutation: Carbon Brush Free Load Speed: 320rpm
Rated Torque: 70g.cm Application: Carbinet Lock, Automatic Door
High Light:

door lock gear motor

,

password locker motor

,

school carbinet motor

Product Description

300rpm Micro Valve Gear Motor Door Lock Gear Motor Password Locker Motor For School



Main specification:

1. Voltage: 6V DC
2. No load speed: 320
±12% rpm
3. Rated speed: 270±12% rpm
4. Rated torque: 70g.cm min
5. Stall torque: 410g.cm min
6. Gear reducer length: 9.4mm
7. Gear ratio: i*1:20.8
8. Custom made: output shaft, parameters ( speed, torque ), motor type ( brush, brushless motor ), encoder etc.
9. Application: valve control, locker motor, password door motor, carbinet locking motor etc

Motor parameters without gearbox:

Motor model Voltage
VDC
NO LOAD AT LOAD STALL
SPEED CURRENT SPEED CURRENT TORQUE POWER TORQUE CURRENT
±10% r/min mA ±10% r/min mA g.cm W g.cm A
DC2434 6V 7200 30 5800 100 5 0.5 30 230


Mounting dimensions:



300rpm Micro Valve Gear Motor Door Lock Gear Motor Password Locker Motor For School 0

300rpm Micro Valve Gear Motor Door Lock Gear Motor Password Locker Motor For School 1

It is zinc alloy die-casting, the surface has been sandblasted twice, and there is no residual fingerprint on the surface.



300rpm Micro Valve Gear Motor Door Lock Gear Motor Password Locker Motor For School 2
