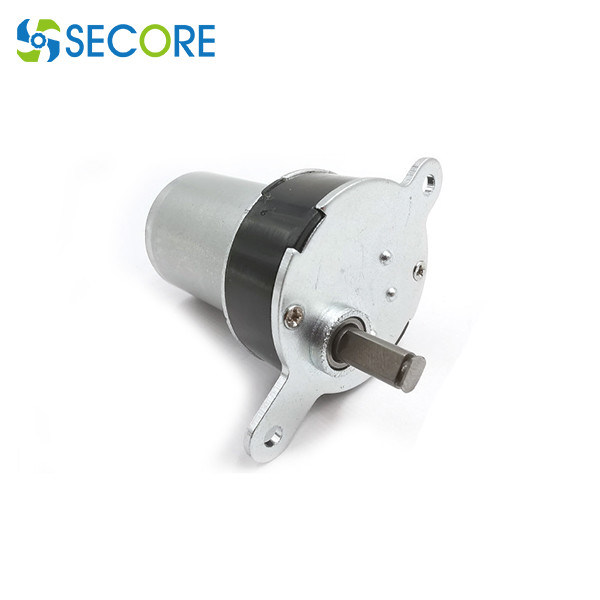

60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven
60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven 60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven 60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven 60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven 60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven
Contact Now

60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 7-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: DC2418-32GM

Detail Information
Model Number: DC2418-32GM Working Voltage: 6V
Gearbox Diameter: 32mm Gear Motor Size: 31mm*48mm
Rated Load Speed: 50-60rpm Rated Torque: 3kgf.cm ( 0.3N.m )
Commutation: Carbon Brush Application: Roast Oven,household Appliance
High Light:

60rpm rotating light motor

,

3kg torque gear motor

,

flat gear motor for roast oven

Product Description

60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven



Gear motor specification for reference:



1. Voltage: 6V DC

2. Free load speed: 75±12% rpm

3. Free load current: 150mA max

4. Rated speed: 60±12% rpm
5. Rated current: 700mA
6. Rated torque: 3kg.cm min
7. Stall current: 1.8A max
8. Stall torque: 7kg.cm min
9. Noise: 60dB max ( 30cm from motor )
10. Gear reducer length: 13mm
11. Application: roast oven, house applicances etc.
12. Can equip brush, or brushless motor, parameters and shaft are customizable.

MODEL# Voltage
VDC		 NO LOAD AT LOAD STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT POWER
±10% r/min mA ±10% r/min mA Kg.cm Kg.cm A W
DC2418-32GM 6 75 150 52 700 3 7 1.8 1.5


Mounting dimensions:

60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven 0



60rpm Rotating Light Brush Gear Motor, 3kg Torque Flat Gear Motor For Roast Oven 1
