Outrunner 27mm Outer Rotor BLDC Motor 17000rpm For Vacuum Cleaner

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China,Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-2713O

Detail Information

Speed RPM: 13000-17000 Or Customized Rated Voltage: 12volt 24V
Rated Torque: 53g.cm Or As Request Dimension: ∮27*13(mm)
Construction: Pernanent Magnet Efficiency: 85%
Keyword: Bldc Motor, Outrunner Bldc Motor, Bldc Motor Price, Brushless Dc Electric Motor Typical Application: Power Tool, Vacuum Cleaner, Leaf Blowers, Circular Saw
High Light:

27mm Outer Rotor BLDC Motor

,

17000rpm Outer Rotor BLDC Motor

,

17000rpm outrunner bldc motor

Product Description

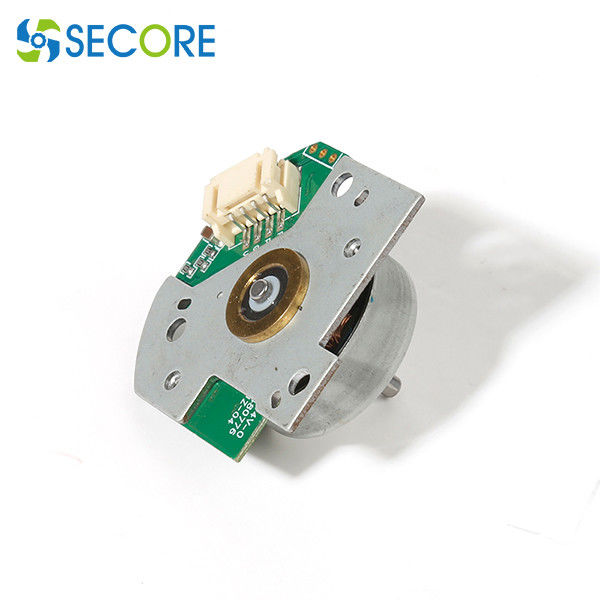

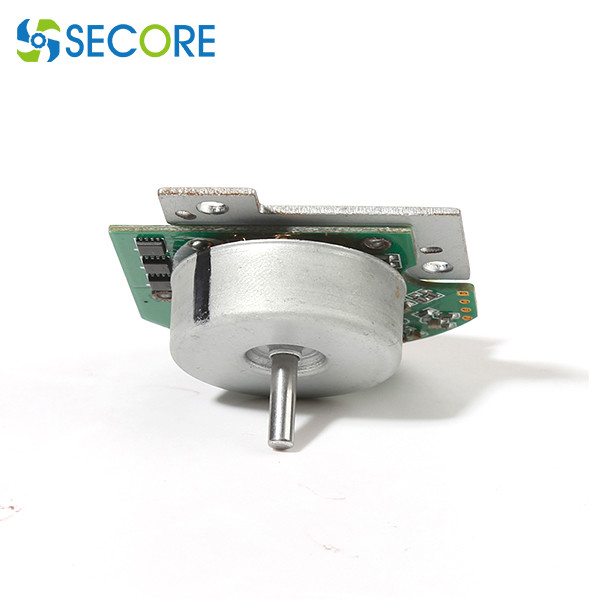

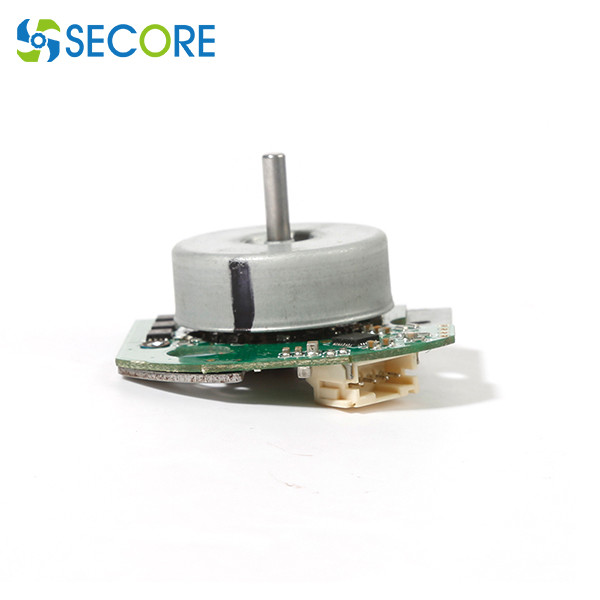

27mm Outer Rotor BLDC Motor For Vacuum Cleaner With 17000rpm High Speed



Parameters:



Diameter* Length: φ27.0* 13.0mm

Built-in driver

PWM pulse wide speed range

Clockwise/counter-clockwise rotation

FG speed feedback signal

Low EMC / Low EMI / Low noise

Long life: 20000hrs Min.



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS2713O-V1 8V-15V 12V 16755 0.18 13754 0.89 53.2 7.6 297.8 3.9
BLS2713O-V2 8V-26V 18V 17005 0.13 14127 0.56 55.4 8.1 323.6 2.9
BLS2713O-V3 8V-26V 24V 17526 0.11 14555 0.47 55.5 8.4 326.6 2.3




Outrunner 27mm Outer Rotor BLDC Motor 17000rpm For Vacuum Cleaner 0



The advantages of brushless motors:



They can operate at higher speeds (up to 100,000 rpm compared to 20,000 rpm for brushed motors).

They have a longer service life (over 10,000 hours of operation)

They are more reliable and efficient.

There are no wearing parts except for the bearings, which reduces maintenance operations.

The fact that brushless motors are able to operate at very high speeds makes them particularly suitable for hair dryer, fans, grinders or saws.

Brushless motors are systematically equipped with an encoder, a sensor that allows for electronic switching and determination of the rotor position. These motors are therefore perfect for servomotor precision applications.



If there is no suitable specifications, it can be customized according to actual needs.





Parts of Typical Application:



-Office apparatus and medical devices

• Printer, Copier, Projector, Shredder, fax ( paper cutter), computer peripheral, lifting socket etc.

• Sphygmomanometer, breath machine, cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors

• Fascia gun, massage chair, treadmill

-Household appliances and personal care

• Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment,     eyebrow tweezer, electric threading knife

• Blender, sweeper, window cleaner, small household appliances etc.
