24mm Geared Brushless DC Motor , 9V Low Speed Geared DC Motor

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLS2430I-GB

Detail Information

Speed: 50rpm Or Customized Rated Voltage: 9V
Rated Torque: 0.29(N.m)or As Request Diemeter * Length: 24*30(mm)
Type: 60rpm Geared BLDC Motor, Mini Brushless Gear Motor, Planetary Gear Motor BLDC Typical Application: Pool Cover Systems, Golf Trolley, Amusement Machines
High Light:

geared brushless dc motor

,

24mm geared brushless dc motor

,

24mm geared dc motor

Product Description

24mm 9v Low Speed Micro Brushless DC Planetary Gear Motor For Swimming Pool Cleaner



Main features:



-Size: φ24.0* 30.0mm

-Built-in driver / optional gearbox / encoder / brake / connector

-PWM pulse wide speed range

-Clockwise/counter-clockwise rotation

-FG speed feedback signal

-Low EMC / EMI / noise

-Long life: 20000hrs Min.

-Precision and low noise brushless motor with gearbox

-Design competence for controller board of brushless motor

-Provide OEM&ODM services with a full range of BLDC motor platform
-Consistency assurance of product quality



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A N.m W N.m A
BLS2430I-GB-V1 5~12V 9V 76 0.14 60 0.443 0.26 2.372 1.33 1.543
BLS2430I-GB-V2 8~16V 12V 123 0.12 99 0.434 0.23 3.173 1.15 1.635
BLS2430I-GB-V3 8~26V 24V 122 0.08 97 0.365 0.42 5.36 1.97 1.325

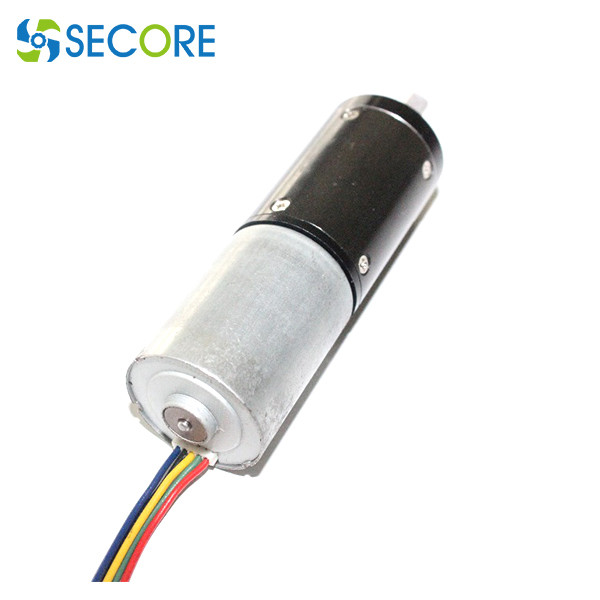

24mm Geared Brushless DC Motor , 9V Low Speed Geared DC Motor 0



TO BE TAILORED:



1. The output shaft diameter, shaft length, and shaft output
2. The number of pole pairs of the motor and the angle of the Hall sensor
3. User can choose with or without Hall drive.
4. Optional: deceleration structure/ reducer, brake, built-in driver.
5. The end cover can be made of aluminum alloy or stainless steel.
6. Bearing type: oil bearing or rolling bearing.
7. The motor can rotate clockwise and / or counterclockwise.



24mm Geared Brushless DC Motor , 9V Low Speed Geared DC Motor 1



24mm Geared Brushless DC Motor , 9V Low Speed Geared DC Motor 2

Some of our customers



24mm Geared Brushless DC Motor , 9V Low Speed Geared DC Motor 3



24mm Geared Brushless DC Motor , 9V Low Speed Geared DC Motor 4

24mm Geared Brushless DC Motor , 9V Low Speed Geared DC Motor 5



24mm Geared Brushless DC Motor , 9V Low Speed Geared DC Motor 6

Typical Application:



Automatic Windows or doors, electric locks, micro hoist, Garbage disposal, water IC CARDS, toys and gifts, figer - electronic locks, optical devices, Card machine, robot, towel machine, office equipment, household appliances, automatic actuator,etc.
