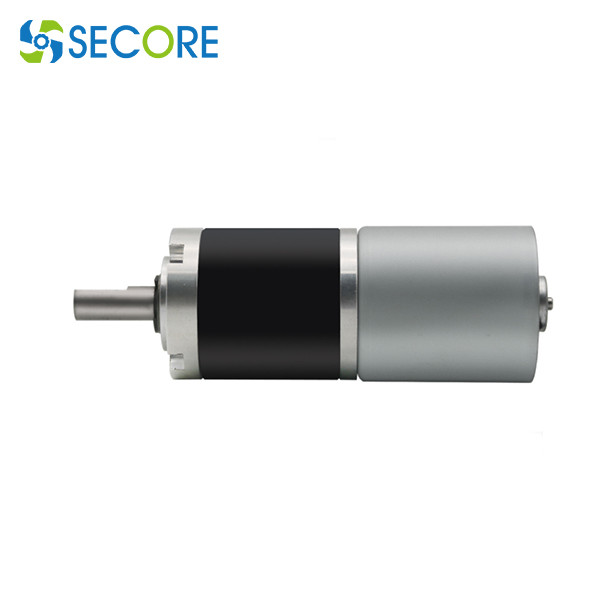

Cooking Machine Planetary Brushless DC Gear Motor 30W 900rpm With Durable Bearing

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: BLH3650I-GB

Detail Information

Speed: 900rpm Or Customized Rated Voltage: 12V
Rated Torque: 2.8(N.m)or As Request Diemeter * Length: 36*50(mm)
Type: Gear Motor, Gear Motor Dc, Dc Gear Motor, Gear Motor 12 Volt Typical Application: Cooking Machine, Car Pump, Medical Pump, Air Pump, Printer
High Light:

30W Brushless DC Gear Motor

,

900rpm Brushless DC Gear Motor

,

Brushless gear motor 12 volt

Product Description

30W 900rpm Brushless DC Gear Planetary Motor With Durable Bearing For Cooking Machine



Main features:



This is a brushless DC micro-motor and planetary gear reducer design. In terms of material selection, this 24V DC geared motor uses imported steel export shafts. The length can be customized. The bearings have good wear resistance and ensure low noise. At the same time, it has the characteristics of long life, and the metal back cover is strong.



Diameter: 36mm

Length: 40mm/50mm body plus gear box length (length can be increased or decreased according to requirements)

Reduction ratio: 6.3, 10, 30, 50, 90, 150, 270, 450, 650, 810

Efficiency: 95%

Drive: internal/external

Outlet shaft: center shaft/eccentric shaft

Gear box: can be customized according to requirements

Position sensor: sensed / senseless

Features: small size, stable operation, lifespan up to 30,000 hours



Operating voltage: DC12V Power: 10W

reduction

ratio

1:3.7 1:5.2 1:14 1:19 1:27 1:51 1:71 1:100 1:139 1:189 1:264 1:369 1:515 1:721
no load rpm 1300 780 290 215 150 80 58 40 30 22 15 11 7 5
rated kg.cm 0.6 1.5 4 5.6 8 15 21 30 40 56 60 60 60 60
rated rpm 1100 363 135 99 70 40 26 20 16 10 7 8 4 3
rated loading current ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.0
cut-off protection
current (A)
3A automatic power off, need to reconnect the open circuit power supply to run





Operating voltage: DC24V Power: 30W

reduction

ratio

1:3.7 1:5.2 1:14 1:19 1:27 1:51 1:71 1:100 1:139 1:189 1:264 1:369 1:515 1:721
no load rpm 2220 1540 580 420 300 160 112 80 58 42 30 22 15 11
rated kg.cm 1 3 8 11 16 30 42 60 60 60 60 60 60 60
rated rpm 1100 730 270 200 145 80 56 40 34 21 15 11 8 5
rated loading current ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.0
cut-off protection
current (A)
3A automatic power off, need to reconnect the open circuit power supply to run



Cooking Machine Planetary Brushless DC Gear Motor 30W 900rpm With Durable Bearing 0





MOTOR DESIGN



Cooking Machine Planetary Brushless DC Gear Motor 30W 900rpm With Durable Bearing 1



Cooking Machine Planetary Brushless DC Gear Motor 30W 900rpm With Durable Bearing 2



Advantage of ANSOFT electromagnetic software and dynamic simulation analysis:



1. Optimize motor performance and efficiency
2. Optimize the electromagnetic field distribution of the motor
3. Reduce motor cogging torque, vibration and noise
4. Significantly improve the reliability of the motor

5. Optimize the use of motor materials to reduce weight and reduce costs

6. Reasonable electromagnetic design and structural design to reduce noise and vibration


How many types of gear motor?



For low-speed, high-load applications, a motor(AC/DC/BLDC) with a specific reduction ratio gearbox is an inevitable choice.



There are four main types of gearboxes: planetary gearbox, worm gearbox, helical gearbox and spur gearbox . Each gearbox has its advantages and disadvantages. You will have to choose the one that's the most adapted to your motor . For example, if you are looking for a good level of efficiency, perhaps you should consider a planetary gearbox rather than a helical gearbox.



We could design the motor for you according to your actual needs.

Typical Application:



Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc.

Household electrical appliance : lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc.,

The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.

Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc.

Office automation: automatic doors, elevator doors, roller shutter, curtains, punch machines, financial instruments, etc.

Medical and health-care equipment: all kinds of massage health care equipment, medical equipment, etc.
