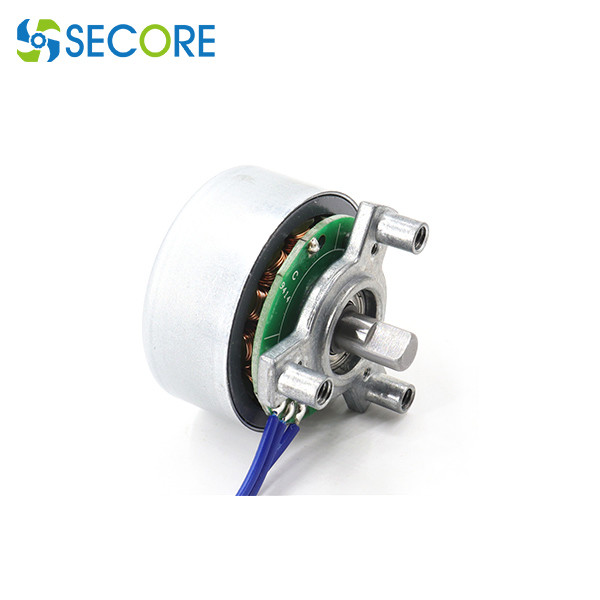

Fascia Muscle Gun Brushless Outrunner Massager Motor 5500RPM With 3mm Shaft

Contact Now

Fascia Muscle Gun Brushless Outrunner Massager Motor 5500RPM With 3mm Shaft

Minimum Order Quantity :	500	Price :	Negotiated The Price
Packaging Details :	500pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Guangdong, China	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	BLS-3717O

Detail Information
Speed:	5000rpm~15000RPM Or Customized	Rated Voltage:	12V 24V Or As Request
Dimension:	37mm * 20mm Diameter * Height	Rated Torque:	90g.cm Or As Request
Feature:	Low Noise, Totally Enclosed, High Speed	Commutation:	Brushless EMC
High Light:	5500RPM Massager Motor , Massager Motor 3mm shaft , 5500RPM brushless outrunner motor

Product Description

High Torque Sensored Massager Motor, Brushless Outrunner Motor 5500RPM For Fascia Muscle Gun

Main features:

Product name	High Torque Sensored Massager Motor, Brushless Outrunner Motor 5500RPM For Fascia Mussle Gun
Typically application	Mussle massage gun, vibration massager, back massager, massage chair
Rated power	36W
Dimension	37mm * 20mm diameter * length
Shaft diameter	3mm
No load current	0.33A at 18V
Weight	75g

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	OPERATING RANGE	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	OPERATING RANGE	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BLS3717-V1	8V~16V	12V	11873	0.27	10324	1.65	153.2	16.27	1184.4	10.64
BLS3717-V2	8V~26V	18V	18024	0.33	15483	1.74	168.6	26.33	1202.5	10.93
BLS3717-V3	8V~26V	24V	23267	0.35	20492	2.63	253.7	53.43	2111.4	19.25

Fascia Muscle Gun Brushless Outrunner Massager Motor 5500RPM With 3mm Shaft 0

Fascia Muscle Gun Brushless Outrunner Massager Motor 5500RPM With 3mm Shaft 1

What are the Advantages of Brushed and Brushless DC Motors?

Brushed

1. Low overall construction costs

2. Can often be rebuilt to extend life

3. Simple and inexpensive controller

4. Controller not needed for fixed speed

5. Ideal for extreme operating environments

Brushless

1. Less overall maintenance due to lack of brushes

2. Operates effectively at all speeds with rated load

3. High efficiency and high output power to size ratio

4. Reduced size with far superior thermal characteristics

5. Higher speed range and lower electric noise generation.

Motor Solution in areas of expertise:

Juicer motor	Dishwasher motor	Lawn mower motor	Mulcher motor
Treadmill motor	Washing machine motor	Secateur motor	Grass Cutter motor
Fascia gun motor	Fan motor	Olive shaker motor	Lown Mower motor
Electric massager motor	Small home appliance motor	Pole pruner motor	Electric Chain Saw motor
Air conditioner motor	Chain saw motor	Concrete cutter motor	Robot motor
Robot vacuum cleaner motor	Trimmer motor	Metal cuter motor	Component motor
Power reclining sofas motor	Leaf blower motor	Circular saw motor	Snow Thrower motor
