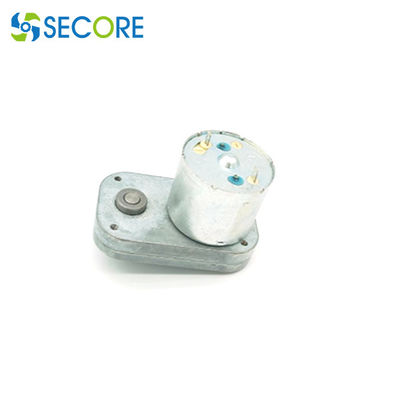

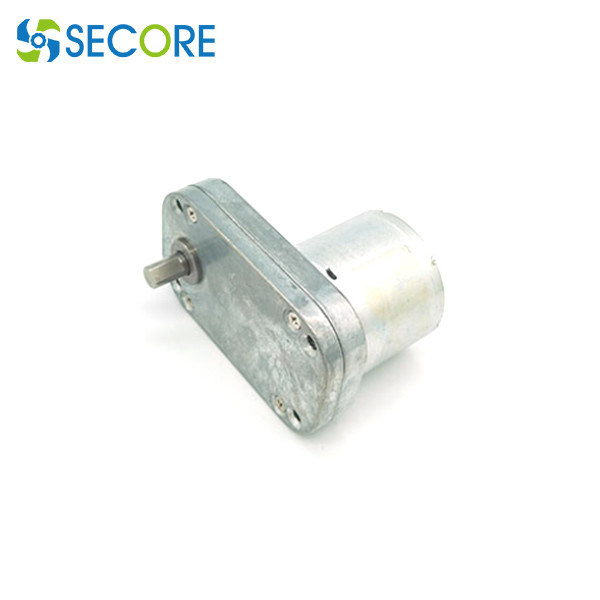

30mA 12V 10RPM DC Planetary Gear Motor 33mm For Financial Equipment

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: DC3365-SG

Detail Information

Rated Speed: 11rpm Continuous Current: 30mA
Commutation: Brush Voltage: 12V / 24V
Rated Torque: 3.0 Kgf.cm Motor Dimension: D33mm * 65mm
Type: Gearbox Motor, Brush Dc Spur Gear Motor Typical Application: Financial Equipment, Automation, Game Consoles
High Light:

10RPM DC Planetary Gear Motor

,

30mA DC Planetary Gear Motor

,

33mm DC Brush Gear Motor

Product Description

12V Brush Dc Spur Gear Motor 10RPM, 33mm DC Brush Gear Motor Customized

Main features:

Motor type: Brush commutated DC gear motor
Gearbox type: spur gearbox
Diameter of Gearbox: 65*38*12mm; DC motor: 33mm diameter





    No load load stall
Model number Rated voltage current (mA) speed (rpm) current (mA) speed (rpm) torque kgf.cm output power W Torque kgf.cm Current mA
DC6538-135 12 ≤30 24 ≤100 19 1.6 0.5 ≥3.0 ≤400
DC6538-225 12 ≤30 14 ≤100 11 3 0.5 ≥4.5 ≤400




Reduction ratio 1:40 / 1:67 1:135 / 1:225 1:450
gearbox length 65*38*12 65*38*12 65*38*12
gearbox efficiency 72% 65% 58%


Gear motor dimensions:

30mA 12V 10RPM DC Planetary Gear Motor 33mm For Financial Equipment 0


Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.

Rated voltage: 12VDC/24VDC other voltage
Application Industry/TApplication Industry: Financial equipment, automation, game consoles and other industries;
Note: The expected shape and performance can be customized according to requirements
