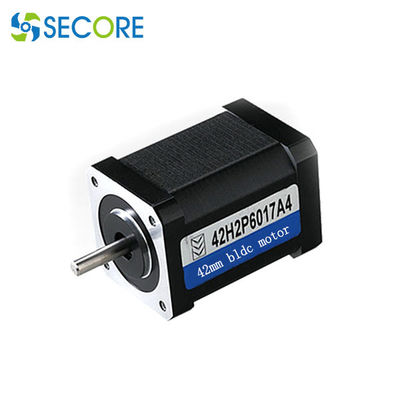

3000R/ Min Brushless DC Motor 3000rpm BLDC EC Motor For Sweeper Machine

Contact Now

3000R/ Min Brushless DC Motor 3000rpm BLDC EC Motor For Sweeper Machine

Name: 3000R/ Min Brushless DC Motor 3000rpm BLDC EC Motor For Sweeper Machine
Brand: SECORE
SKU: BLS42-50W
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (188 reviews)

Minimum Order Quantity :	1	Price :	Negotiated The Price
Packaging Details :	1pc per carton or as request	Delivery Time :	7-10 working days
Payment Terms :	T/T, D/A	Supply Ability :	7000pcs per month

Place of Origin:	China,Guangdong	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	BLS42-50W

Detail Information
Speed RPM:	3000R/ Min	Rated Power:	50W
Rated Torque:	0.16N.m	Commutation:	Brushless
Rated Voltage:	12V, 24V, 36V, 48V, 310V Optional	Dimension:	42mm* 41mm/ 51mm/61/81mm
Construction:	Pernanent Magnet	Origin:	China
Product Type:	Bldc Motor	Typical Application:	Robot, Air Cleaner
High Light:	Sweeper Machine Brushless DC Motor , 3000R/ Min Brushless DC Motor , 3000rpm BLDC EC Motor

Product Description

20W 30W 40W 50W Brushless Motor 3000rpm BLDC EC Motor for Sweeper Machine

Secore Motor specializes in the production and sales of various DC brush & brushless motors, provides one-to-one customer service, and accepts customization of motors with special parameters. Welcome to inquire.

Specifications :

50W Specification , continuous rating

Model number	Voltage V	Power W	Rated speed rpm	Rated current A	Rated torque N.m	No-load speed rpm	No-load current A	Peak Torque N.m
电机型号	电压 V	功率 W	额定转速 rpm	额定电流 A	额定转矩 N.m	空载转速 rpm	空载电流 A	最大转矩 N.m
BLS42-50W-1230	12	50	3000	5.21	0.16	3300	<1.3A	0.48
BLS42-50W-2430	24	50	3000	2.6	0.16	3300	<0.8A	0.48
BLS42-50W-3630	36	50	3000	1.74	0.16	3300	<0.6A	0.48
BLS42-50W-4830	48	50	3000	1.3	0.16	3300	<0.4A	0.48
BLS42-50W-31030	310	50	3000	0.2	0.16	3300	<0.05A	0.48

Model number	Voltage V	Power W	Rated speed rpm	Rated current A	Rated torque N.m	No-load speed rpm	No-load current A	Peak Torque N.m
电机型号	电压 V	功率 W	额定转速 rpm	额定电流 A	额定转矩 N.m	空载转速 rpm	空载电流 A	最大转矩 N.m
BLS42-40W-1230	12	40	3000	4.17	0.13	3300	<1.2A	0.38
BLS42-40W-2430	24	40	3000	2.08	0.13	3300	<0.9A	0.38
BLS42-40W-3630	36	40	3000	1.39	0.13	3300	<0.6A	0.38
BLS42-40W-4830	48	40	3000	1.04	0.13	3300	<0.4A	0.38
BLS42-40W-31030	310	40	3000	0.16	0.13	3300	<0.06A	0.38

Model number	Voltage V	Power W	Rated speed rpm	Rated current A	Rated torque N.m	No-load speed rpm	No-load current A	Peak Torque N.m
电机型号	电压 V	功率 W	额定转速 rpm	额定电流 A	额定转矩 N.m	空载转速 rpm	空载电流 A	最大转矩 N.m
BLS42-30W-1230	12	30	3000	3.13	0.1	3300	<0.9A	0.29
BLS42-30W-2430	24	30	3000	1.56	0.1	3300	<0.7A	0.29
BLS42-30W-3630	36	30	3000	1.04	0.1	3300	<0.3A	0.29
BLS42-30W-4830	48	30	3000	0.78	0.1	3300	<0.2A	0.29
BLS42-30W-31030	310	30	3000	0.12	0.1	3300	<0.05A	0.29

Model number	Voltage V	Power W	Rated speed rpm	Rated current A	Rated torque N.m	No-load speed rpm	No-load current A	Peak Torque N.m
电机型号	电压 V	功率 W	额定转速 rpm	额定电流 A	额定转矩 N.m	空载转速 rpm	空载电流 A	最大转矩 N.m
BLS42-20W-1230	12	20	3000	2.08	0.06	3300	<0.7A	0.19
BLS42-20W-2430	24	20	3000	1.04	0.06	3300	<0.6A	0.19
BLS42-20W-3630	36	20	3000	0.69	0.06	3300	<0.3A	0.19
BLS42-20W-4830	48	20	3000	0.52	0.06	3300	<0.1A	0.19
BLS42-20W-31030	310	20	3000	0.08	0.06	3300	<0.02A	0.19

TO BE TAILORED

* Expected voltage types

* Configurable shaft length and second shaft end

* Extended temperature range

* Modified shaft dimensions and pinion configurations such as flats, gears, pulleys and eccenter

* Customization for high speed and or high load applications

* Customization for motors with increased electrical or mechanical tolerance requirement

If there is no suitable specifications, it can be customized according to actual needs.
