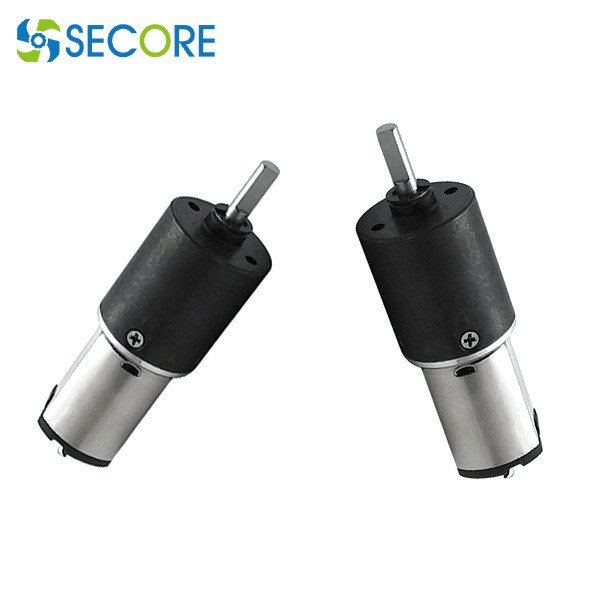

0.85A 30rpm Mini DC Gear Motor 12mm Shaft Metal Gear Motor

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	500pcs per carton or as request	Delivery Time :	12-20 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Shenzhen	Brand Name:	SECORE
Certification:	ISO9001	Model Number:	SC16-030

Detail Information
No-load Speed:	35RPM	Rated Voltage:	12V
Rated Torque:	5kg.cm	Rated Current:	0.85A
Rated Speed:	30rpm	BDC Motor Size:	21.7*35.2 M
Gearbox Size:	37mm	Motor Type:	Mini 15mm Brush Gear Motor
Product Name:	Mini Gear Motor, All Metal Gear Motor	Typical Application:	Electric Window, Intelligent Robot, Automatic Equipment
High Light:	30rpm Mini DC Gear Motor , 0.85A Mini DC Gear Motor , 12mm Shaft Metal Gear Motor

Product Description

Customized Mini DC Gear Motor, Smart Home Appliances Tiny Metal Gear Motor

Main features:

- Voltage: 6V or customized

- Size: φ12*18.6mm motor -- optional gearbox length

- Shaft diameter: 3mm

- Shaft length: 12mm

- To be tailored: Output Shaft, motor speed, voltage

Reduction ration	Length	Reduction ratio	Length
4.0 5.0	12.5	64 76 90 107	19.5
16 19 23	16	256 364 428 688	23

VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY				STALL
RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	Output	TORQUE	CURRENT
VDC	±10% r/min	A	±10% r/min	A	kg.cm	W	kg.cm	A
3	115	0.4	90	0.6	0.4	1	1.4	1.4
5	60	0.5	50	0.8	1.8	1.3	8	1.2
8	55	0.5	46	0.85	3	2	15	2
12	35	0.5	30	0.85	5	2.5	30	2

Motor mounting sizes:

0.85A 30rpm Mini DC Gear Motor 12mm Shaft Metal Gear Motor 0

How to choose the suitable motor?

1. voltage: determine the working condition of the motor application

2. speed: the revolution per minute you need running at the rated voltage

3. torque: how much N.m you need at the rated voltage, how much N.m you need when it stops running

4. size restriction: dimensions of your mounting space

5. output shaft: it can be customized as per different installation requests, shaft diameter, length, threaded shaft, D shaft, dual flat shaft, single flat shaft, spring shaft, keyway shaft etc.
