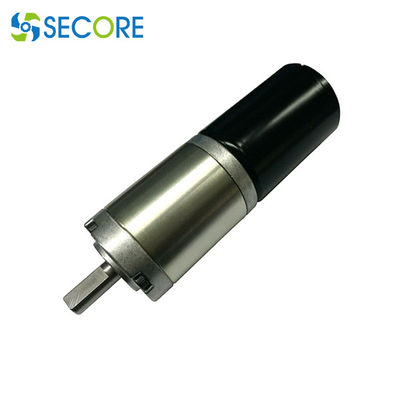

200rpm DC Planetary Gear Motor 36mm 12v Dc High Torque For Medical Device

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: DC555-GB

Detail Information

Speed: 200rpm Rated Voltage: 24V
Output Power: 25W Reduction Ratio: 27k
Rated Torque: 0.6N.m Motor Dimension: 36*57mm
Keyword: 200rpm Dc Gear Motor, 555 Planetary Geared Motor Typical Application: Cleaning Robot, Automatic Device, Feeding Device
High Light:

200rpm DC Planetary Gear Motor

,

36mm DC Planetary Gear Motor

,

Medical Device BLDC Geared Motor

Product Description

555 Gear Motor 36mm 12v Dc High Torque Planetary Gear Motor Supplier With Optional Brake



Main features:



Motor type Brush commutated DC gear motor
Gearbox type Planetary
Diameter Gearbox: 36mm; DC motor:36mm
Nominal voltage 6V/12V/24V DC or customized
Gear ratio 1:3.7 ~1:3736
No load current 121mA~858mA
Nominal current 0.8A-2.5A
No load speed 6000rpm
Nominal speed 5375rpm
Permissible load range 0.1N.m~9N.m for S1 duty cycle
Nominal power 3-20W
IP rating up to IP68



Motor parameters:



Motor Model number RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY Output Power STALL
SPEED CURRENT SPEED TORQUE CURRENT TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm A W g.cm A
DC-555 6 6000 858 4680 150 2.25 7.5 700 10
DC-555 12 3000 170 2400 126 0.56 3.2 630 2.4
DC-555 12 6000 349 4500 281 2.3 13.2 1200 10.2
DC-555 12 8500 639 6450 300 2.8 20.3 1400 11.9
DC-555 24 3000 121 2400 199 0.34 5.1 990 1.4
DC-555 24 4500 175 3600 310 0.62 11.8 1500 3.6
DC-555 24 6000 271 5375 421 0.8 23.6 2000 5.8



Gearbox parameters:



Stage 1 2 3 4 5
Reduction ratio 3.7, 5.2 14, 19, 27 51, 71, 100, 139 189, 264, 369, 515, 721 977, 1367, 1910, 2671, 3736
gearhead length L 26.5 34.5 42.5 50.5 58.5
gearhead efficiency 89% 81% 73% 65% 59%



Output torque of gear motor: output torque of motor x reduction ratio x gearbox efficiency;

Output speed of gear motor: output speed of motor reduction ratio.



Gear motor mounting sizes:



200rpm DC Planetary Gear Motor 36mm 12v Dc High Torque For Medical Device 0







Questions & Answers

Q: Do you accept customization?
A: Yes, in fact, most of our products are customized according to customer needs.

Q: What can be customized?
A: Generally, you can customize the parameters of the motor such as voltage, speed and torque, as well as the length of the output shaft. It can also control the noise of the motor and enhance the life of the motor according to the special needs of customers.

Q: Can your motor be forward and reverse rotation (CW/CCW)?
A: Yes, the exchange electrode motor will rotate in the opposite direction.

Q: Is there a charge for samples?
A: Our samples are generally charged, but our purpose is not to make a profit.

Q: How long does it take to make a sample?
A: Usually about 1-2 weeks.

Q: How long does it take for mass production?
A: Generally about 4-5 weeks, please communicate with us if you need to expeditiously deal with special circumstances.

Q: What is the minimum order quantity?
A: There is no limit on the number of samples, the minimum order quantity for bulk goods is 500 units if no stock available, and the limit can be relaxed if trial production is appropriate.

Q: I don’t know how to choose a suitable motor.
A: Please contact our business and tell us the specific purpose of the motor. It is best if you can caculate the voltage, speed and torque of the motor.
