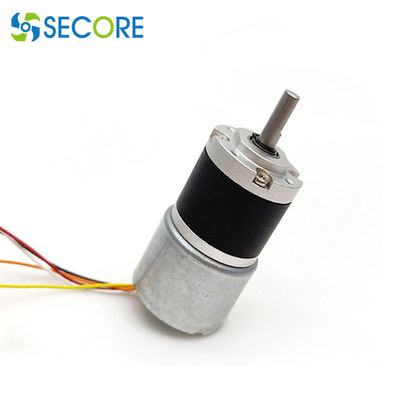

DC Deceleration Planetary Brushless Bldc Motor 24mm Micro Robot Gear Motor

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China,Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-2418-GB

Detail Information

No Load Speed: 6.5rpm Rated Speed: 5rpm
Rated Torque: 3KG.CM Rated Current: 1.8A
Output Power: 13W Motor Size: 24*18mm ( Diameter * Length)
Product Name: 24mm Gear Motor, Robot Planetary Bldc Gear Motor Gear Head Size: 22mm * Optional Length
High Light:

Deceleration Planetary Brushless Bldc Motor

,

13W Brushless Bldc Motor

,

24mm Micro Robot Gear Motor

Product Description

DC Deceleration Planetary Brushless Bldc Motor 24mm Micro Robot Motor Gear Motor



Key technical data for motor:



Model # RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED CURRENT SPEED TORQUE CURRENT Out. Power TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm mA W g.cm A
BLS1645-12 12 6200 60 5100 20 180 1.05 110 0.7
BLS1645-24 24 8700 50 7500 20 130 1.54 145 0.7



Key technical data for motor with gearbox:



gear ratio 16 62 84 104 231 316 370 455 1014
no-load Speed ( rpm ) 12V 380 100 70 58 25 20 17 14 6
rated Torque (kg.cm ) 0.2 0.4 1 1.2 2.5 3 3 3 3
rated Speed ( rpm ) 320 82 60 50 22 17 15 13 5
no-load Speed ( rpm ) 24V 540 140 100 80 36 27 23 19 8
rated Torque (kg.cm ) 0.2 0.7 1 1.2 2.5 3 3 3 3
rated Speed ( rpm ) 470 120 90 70 32 24 20 16 7



Gear motor dimension:



DC Deceleration Planetary Brushless Bldc Motor 24mm Micro Robot Gear Motor 0



DC Deceleration Planetary Brushless Bldc Motor 24mm Micro Robot Gear Motor 1



How to select the suitable gear motor?



Know your application requirements for your gear motor:



General requirements: enclosure size, mounting orientation, mounting type and size, overhang and side loads, and type of lubrication.

Input Power: Voltage, Frequency (Hz), Maximum Current (Amps) and Control Type (if applicable).

Gear motor specifications: size, weight, required noise level, life expectancy and maintenance level.

Gear motor performance: speed, torque, duty cycle, horsepower, starting and running torque (full load).

Operating Environment: Application and ambient temperature, and protection (IP) rating.
