24V Electric Outrunner 3 Phase Brushless Motor 55*30 For Fascia Massage Device

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China,Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLS5530O

Detail Information

Speed RPM: 2000-5000 Or Customized Bearing: Ball Bearing
Continuous Current: 0.2A Model Number: BLS5530O
Dimension: ∮55*L30(mm) Construction: Pernanent Magnet
Commutation: Out Rotor Brushless Torque: 1000g.cm
Efficiency: IE 2 Product Name: Outrunner BLDC Motor, 24v Brushless Motor
Application: Fascia Gun, Cordless Drill, Electric Fan, Office Appliances
High Light:

24V 3 phase brushless motor

,

Outrunner 3 phase brushless motor

,

Outrunner Brushless Motor

Product Description

55*30 24V 3 Phase Outer Rotor Brushless Dc Electric Motor For Fascia Massage Device



Specification:



1. Structure: Outrunner Brushless Motor

2. Size: Φ55*L30mm

3. Shaft Dia: 6mm

4. Certification: RohS, CE

5. Weight: 220gram

6. Endplay: 0.3mm Max

7. Lifetime: 10000h

8. Phase: 3

9. Rotation: CCW (viewed from the output shaft)

10. Ball bearings on both sides, Class B winding wires

11. The shaft length, shape, can be custom made

12.Rated voltage: 24V

13. 3200RPM 30W

14. With hall sensors and driver, speed control board available

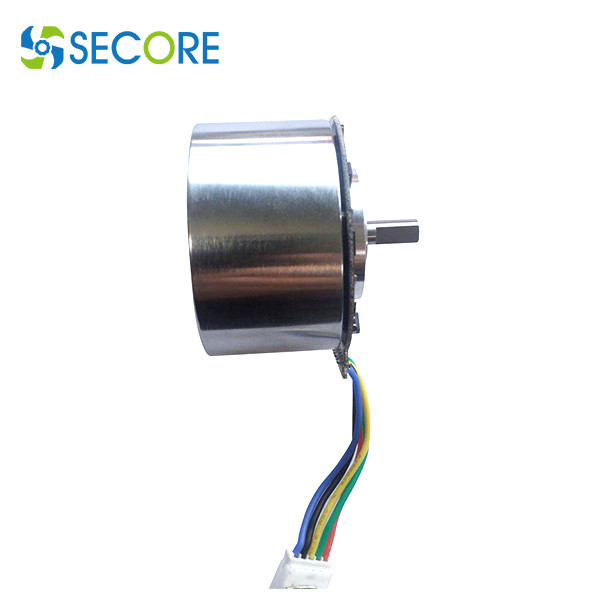

24V Electric Outrunner 3 Phase Brushless Motor 55*30 For Fascia Massage Device 0

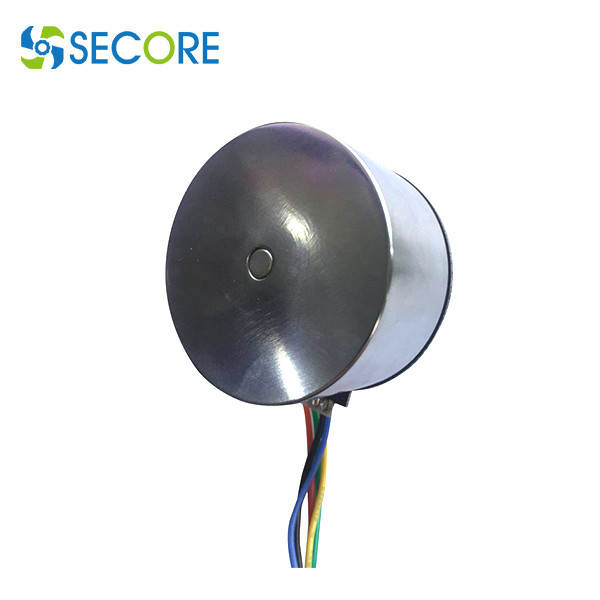

24V Electric Outrunner 3 Phase Brushless Motor 55*30 For Fascia Massage Device 1



24V Electric Outrunner 3 Phase Brushless Motor 55*30 For Fascia Massage Device 2




What is Brushless DC Motor?



The brushless DC motor is composed of the motor body and the driver. The brushless DC motor uses Hall sensors to replace the carbon brush commutator. NdFeB is used as the permanent magnet material of the rotor. Compared with the general traditional DC motor, the performance of the brushless DC motor has great advantages, is the most ideal speed-regulating motor today.



24V Electric Outrunner 3 Phase Brushless Motor 55*30 For Fascia Massage Device 3



TO BE TAILORED



♦ Customized voltage, motor performance

♦ Customized mounting, shaft shape and dimension, and lead configuration

♦ EMI/RFI suppression circuit

♦ Overload protection, thermal protection

♦ High temperature and waterproof option

♦ Integrated gearbox, controller, encoder and brake



If there is no suitable specifications, it can be customized according to actual needs.



About us



Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.

24V Electric Outrunner 3 Phase Brushless Motor 55*30 For Fascia Massage Device 4



24V Electric Outrunner 3 Phase Brushless Motor 55*30 For Fascia Massage Device 5



Motor designer –ANSOFT Finite element analysis



24V Electric Outrunner 3 Phase Brushless Motor 55*30 For Fascia Massage Device 6

Structure: static characteristics analysis, model, buckling, contact, prestress and vibration analysis
Heat: heat conduction characteristics of multifunctional structure
Dynamic: analysis of the movement state and stress of components
Vibration: Perform dynamic time, frequency, and random shock analysis



Advantages of dynamic simulation analysis



* Optimize the use of motor materials to reduce weight and reduce costs
* Reasonable electromagnetic design and structural design to reduce noise and vibration



some of Our customers



24V Electric Outrunner 3 Phase Brushless Motor 55*30 For Fascia Massage Device 7



Typical Application:



-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
