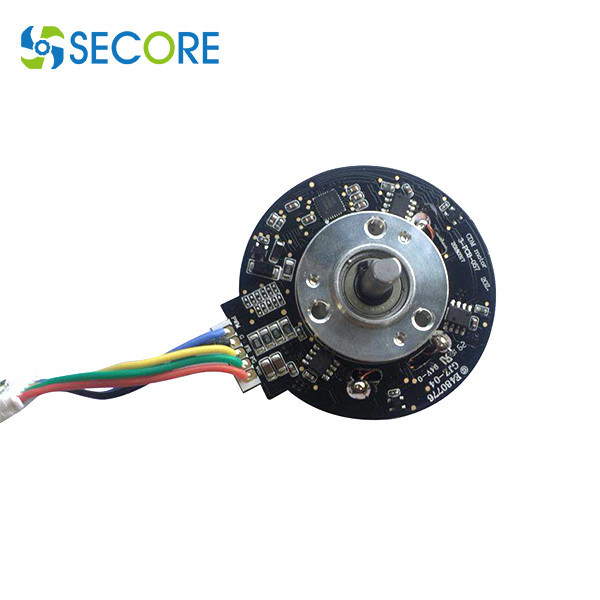

4000rpm 24V DC Brushless Massager Motor RohS BLDC For Massager Drill Screwdriver

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China,Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLS5530O

Detail Information

Speed RPM: 2000-5000 Or Customized Bearing: Ball Bearing
Type: BLDC Motor, Brushless Electric Motor, Outer Runner Motor Typical Application: Fascia Gun, Electric Drill, Fan, Home Appliances
Continuous Current: 0.2A Model Number: BLS5530O
Dimension: ∮55*L30(mm) Construction: Pernanent Magnet
Commutation: Out Rotor Brushless Weight: Approx 300g
Efficiency: IE 2
High Light:

4000rpm Massager Motor

,

RohS Massager Motor

,

24v bldc motor

Product Description

4000rpm 24V DC 16KG.CM torque Brushless Motor for Massager Drill Screwdriver



Specification :



1. Structure: Outrunner Brushless Motor

2. Size: Φ55*L30mm

3. Shaft Dia: 6mm

4. Certification: RohS, CE

5. Weight: 300gram

6. Endplay: 0.3mm Max

7. Lifetime: 10000h

8. Phase: 3

9. Rotation: CCW (viewed from the output shaft)

10. Ball bearings on both sides, Class B winding wires

11. The shaft length, shape, can be custom made

12.Rated voltage: 24V

13. 3200RPM 30W

14. With hall sensors and driver, speed control board available





4000rpm 24V DC Brushless Massager Motor RohS BLDC For Massager Drill Screwdriver 0




What is BLDC motor?



The BLDC ( brushless DC) motor is composed of the motor body and the driver. The brushless DC motor uses Hall sensors to replace the carbon brush commutator. NdFeB is used as the permanent magnet material of the rotor. Compared with the general traditional DC motor, the performance of the brushless DC motor has great advantages, is the most ideal speed-regulating motor today.



Brushless DC motors provide high power in a small package. Our factory manufactures a wide range of AC motor and brushless DC (BLDC) motor products.







More models for further reference:





Model # BLS2413O BLS2713O BLS2717O BLS2719O BLS2717O BLS4225O BLS4548F BLS5550F
Type BLDC Motor BLDC Motor BLDC Motor BLDC Motor BLDC Motor BLDC Motor BLDC Motor BLDC Motor
Size (mm) Φ24.0*H13 Φ27.0*H13 Φ27.0*H17 Φ27.0*H19 Φ37.0*H17 Φ42.0*H26 Φ45.4*H55 Φ55.0*52.0
Voltage (V) 5~26VDC 5~26VDC 5~26VDC 5~26VDC 8~26VDC 8~26VDC 8~25.2VDC 8~25.2VDC
RPM 10,000~20,000 6000~15,000 5000~30,000 5000~30,000 5000~30,000 5000~40,000 30,000~100,000 30,000~100,000
Power (W) 20W 20W 35W 45W 65W 130W 120W 250~300W
Weight(g) 50g 55g 60g 65g 70g 125g 100g 150g
Typical
application
sweeper,
vacuum cleaner
sweeper,
drive wheel chair
small power window cleaner,
vacuum cleaner
high power sweeper,
window cleaner
high power window cleaner Hand-held vacuum cleaner High-speed handheld vacuum fan High-speed handheld vacuum fan



Model # BLS2418I BLS2419I BLS2430I BLS2838I BLS3640I BLS2413O BLS4220O
Type inner BLDC Motor inner BLDC Motor inner BLDC Motor inner BLDC Motor inner BLDC Motor outer BLDC Motor outer BLDC Motor
Size (mm) Φ24.4*H18.1 Φ24.4*H19.0 Φ24.4*H30.8 Φ28.0*H37.6 Φ36.0*H40.0 Φ24.0*H13.0 Φ40.5*H21.0
Voltage (V) 3.7~26VDC 3.7~26VDC 3.7~26VDC 3.7~26VDC 3.7~26VDC 3.7~26VDC 100~240VDC
RPM 3000~10,000 3000~12,000 2000~12,000 3000~15,000 3000~10,000 3000~25,000 6000~25,000
Power (W) 3~5W 5W 6~10W 10~15W 20~30W 15~25W 130W
Weight(g) 30g 35g 50g 75g 150g 50g 130g
Typical
application
electric razor,
electric hair trimmer, hair curler

electric hair trimmer, hair curler
electric razor,
electric hair trimmer
electric razor,
electric hair trimmer
pet electric hair trimmer household hair dryer hair dryer





4000rpm 24V DC Brushless Massager Motor RohS BLDC For Massager Drill Screwdriver 1



TO BE TAILORED



Customized voltage, motor performance

Customized mounting, shaft shape and dimension, and lead configuration

EMI/RFI suppression circuit

Overload protection, thermal protection

High temperature and waterproof option

Integrated gearbox, controller, encoder and brake



If there is no suitable specifications, it can be customized according to actual needs.



4000rpm 24V DC Brushless Massager Motor RohS BLDC For Massager Drill Screwdriver 2



About us



Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.





4000rpm 24V DC Brushless Massager Motor RohS BLDC For Massager Drill Screwdriver 3

4000rpm 24V DC Brushless Massager Motor RohS BLDC For Massager Drill Screwdriver 4



4000rpm 24V DC Brushless Massager Motor RohS BLDC For Massager Drill Screwdriver 5

some of Our customers



4000rpm 24V DC Brushless Massager Motor RohS BLDC For Massager Drill Screwdriver 6



Typical Application:



-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
