Fan Blower 50W Outer Rotor BLDC Motor 3200rpm Brushless with 55mm Housing

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-5520O

Detail Information

Speed RPM: 3000 Or Customized Rated Voltage: 24V
Dimension: 55*20(mm) Construction: Pernanent Magnet
Keyword: Bldc Motor Controller Brushless Dc, Dc Motor Brushless, External Rotor BLDC Typical Application: Scanning Module, Air Pump, Wiper, Oil Pump, Fascia Gun
High Light:

55mm Outer Rotor BLDC Motor

,

50W Outer Rotor BLDC Motor

,

50W dc motor brushless

Product Description

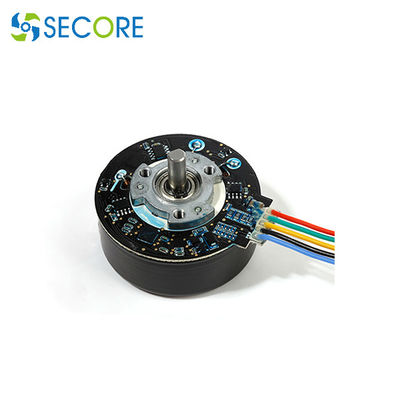

Fan Blower Outer Rotor BLDC Motor With Housing 55mm, 50W 3200rpm



Product specification:



1. Structure: Outrunner BLDC Motor

2. Size: Dia55*L20mm

3. Shaft Dia: 6mm

4. Certification: ROHS

5. Weight: 220gram

6. Endplay: 0.3mm Max

7. Lifetime: 10000h min

8. Phase: 3

9. Rotation: CCW (viewed from the output shaft)

10. Ball bearings on both sides, Class B winding wires

11. The shaft length, shape, can be custom made

12.Rated voltage: 24V

13. 3200RPM 50W

14. With hall sensors and driver, speed control board available


Fan Blower 50W Outer Rotor BLDC Motor 3200rpm Brushless with 55mm Housing 0



The advantages of brushless motors:



1. They can operate at higher speeds (up to 100,000 rpm compared to 20,000 rpm for brushed motors).

2. They have a longer service life (over 10,000 hours of operation)

3. They are more reliable and efficient.

4. There are no wearing parts except for the bearings, which reduces maintenance operations.

5. The fact that brushless motors are able to operate at very high speeds makes them particularly suitable for hair dryer, fans, grinders or saws.

6. Brushless motors are systematically equipped with an encoder, a sensor that allows for electronic switching and determination of the rotor position. These motors are therefore perfect for servomotor precision applications.



If there is no suitable specifications, it can be customized according to actual needs.



Motor designer –ANSOFT Finite element analysis

Fan Blower 50W Outer Rotor BLDC Motor 3200rpm Brushless with 55mm Housing 1Fan Blower 50W Outer Rotor BLDC Motor 3200rpm Brushless with 55mm Housing 2Fan Blower 50W Outer Rotor BLDC Motor 3200rpm Brushless with 55mm Housing 3Fan Blower 50W Outer Rotor BLDC Motor 3200rpm Brushless with 55mm Housing 4

ANSOFT Finite element analysis

Structure: static characteristics analysis, model, buckling, contact, prestress and vibration analysis
Heat: heat conduction characteristics of multifunctional structure
Dynamic: analysis of the movement state and stress of components
Vibration: Perform dynamic time, frequency, and random shock analysis


Advantages of dynamic simulation analysis & of dynamic simulation analysis



a) Optimize the use of motor materials to reduce weight and reduce costs
b) Reasonable electromagnetic design and structural design to reduce noise and vibration
c) Optimize motor performance and efficiency
d) Optimize the electromagnetic field distribution of the motor
e) Reduce motor cogging torque, vibration and noise
f) Significantly improve the reliability of the motor



Parts of Typical Application:



-Office apparatus and medical devices

• Printer, Copier, Projector, Shredder, fax ( paper cutter), computer peripheral, lifting socket etc.

• Sphygmomanometer, breath machine, cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors

• Fascia gun, massage chair, treadmill

-Household appliances and personal care

• Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment,     eyebrow tweezer, electric threading knife

• Blender, sweeper, window cleaner, small household appliances etc.
