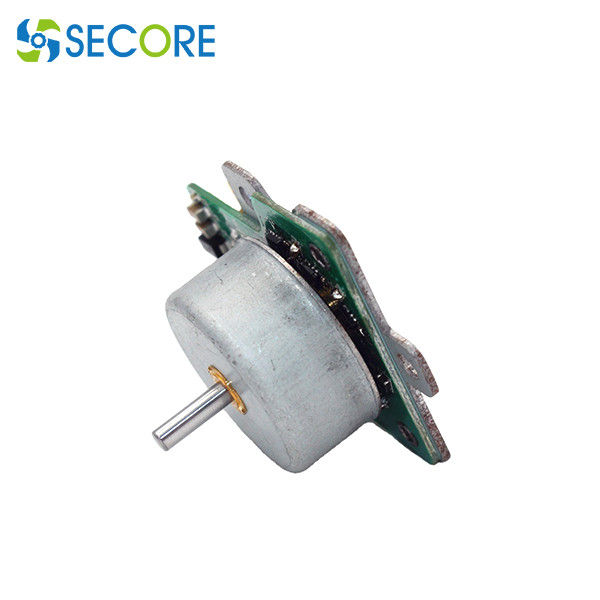

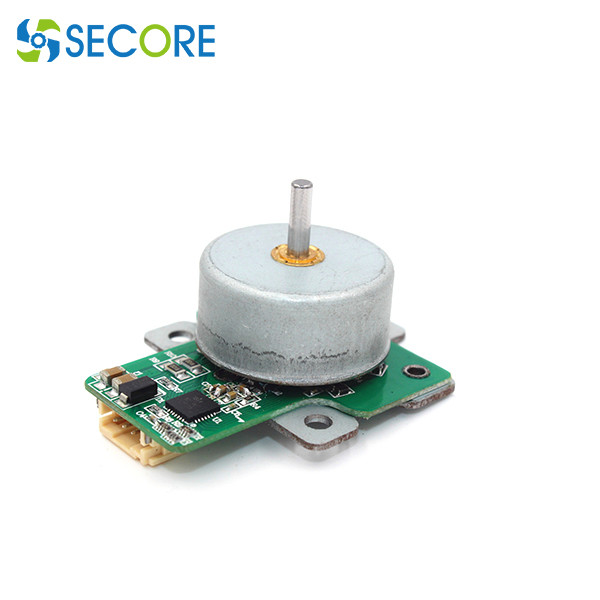

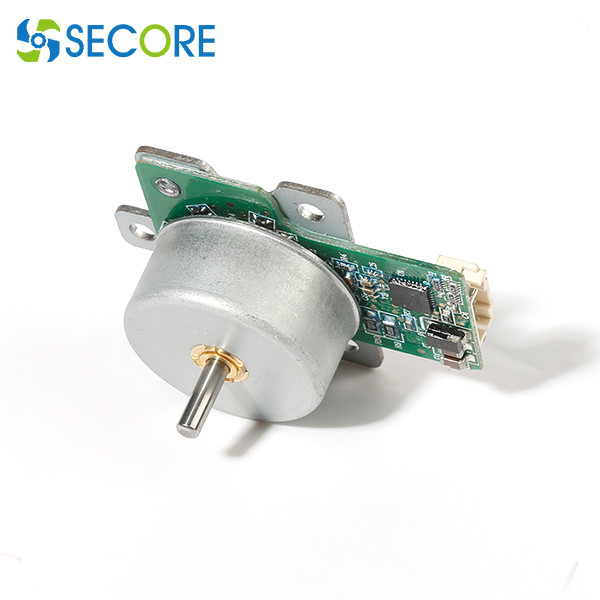

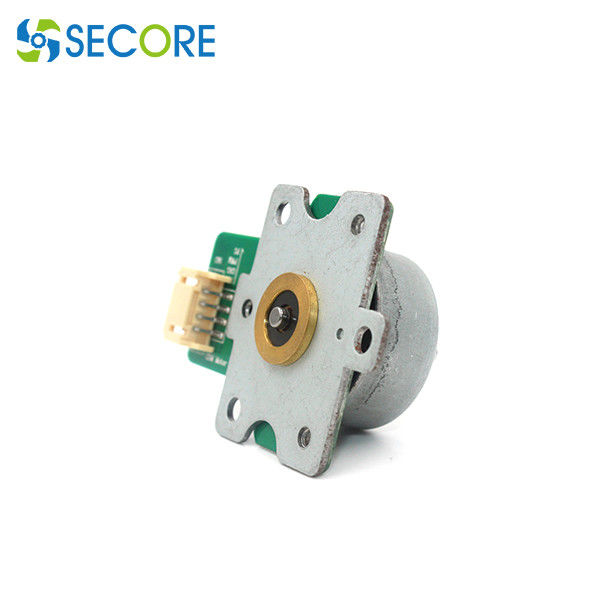

Pet Barber Mini Brushless DC Outrunner Motor 15000rpm 12v 24v With Encoder

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-2717O

Detail Information

Speed: 17000rpm Or Customized Rated Voltage: 24V
Rated Torque: 7.8m.Nm Or As Request Dimension: ∮27*17(mm)
Construction: Pernanent Magnet Efficiency: 67-85%
Keyword: Brushless Dc Motor 35W, Brushless Dc Motor With Encoder Typical Application: Massager Gun, Air Dryer, Body Dryer, Body Massager
High Light:

brushless dc outrunner motor

,

12v brushless dc outrunner motor

,

15000rpm brushless dc motor with encoder

Product Description

Mini Brushless Dc Motor 24volt 17000rpm With Encoder Outerl Rotor BLDC Motor



Parameters:



Diameter* Length: φ27.0* 17.0mm

Built-in driver

PWM pulse wide speed range

Clockwise/counter-clockwise rotation

FG speed feedback signal

Low EMC / Low EMI / Low noise

Long life: 20000hrs Min.




Motor Terminations
NO Terminations I/O Specification Note
1 Vm ( red wire ) I/N DC 24Vm +/- 10%v Power
2 FG (green wire)
VOH OUT 6.0V Max Hall signal pulse output
VOL 0.5V Max
FG Signal current 2mA
Pulse output of rotation 6Pulse/cycle
3 CW/CCW control ( yellow wire )
Input voltage IN 0~5V high--motor ccw
low--motor cw
VIH Min 2.0V or open
VIL Max 0.5V
4 GND GND IN Power ground power ground
5 PWM Control ( blue wire ), 60K Max Typical ( 15K-25K )
Input voltage IN 0~5V (15k-25k) high--motor OFF
low--motor ON
VIH Min 2.0V or open
VIL Max 0.5V
PWM frequency Max50KHz Advise 15~25KHz





Pet Barber Mini Brushless DC Outrunner Motor 15000rpm 12v 24v With Encoder 0

Pet Barber Mini Brushless DC Outrunner Motor 15000rpm 12v 24v With Encoder 1



TO BE TAILORED



  • 1. Voltage, current, speed and torque.
  • 2. Shape of shaft: "D" "Round" "Flat" "Hexagon Axis" "Square axis", shaft dimension
  • 3. Bearing: ball bearing, oil bearing
  • 4. Materials of shell: plastic metal etc
  • 6. Optional equip with reducer, braker, encoder, controller

If there is no suitable specifications, it can be customized according to actual needs.





Know basics about BLDC motor:



A BLDC motor overcomes the requirement for a mechanical commutator by reversing the motor set-up; the windings become the stator, and the permanent magnets become part of the rotor. The stator is typically comprised of steel laminations, slotted axially to accommodate an even number of windings along its inner periphery. The rotor consists of a shaft and a hub with permanent magnets arranged to form between two to eight pole pairs that alternate between ‘N’ and ‘S’. Because the windings are stationary, permanent connections can be established to energize them. For the stationary windings to move the permanent magnet, the windings need to be energized (or commutated) in a controlled sequence to produce a rotating magnetic field.



Parts of Typical Application:



Fascia guns Fan Olive shaker Lown Mower
Electric massagers Small home appliances Pole pruner Electric Chain Saw
Air conditioners Chain saws Concrete cutter Robots
Robot vacuum cleaner Trimmers Metal cuter Components
Power reclining sofas Leaf blowers Circular saw Snow Thrower
Juicer Dishwashers Lawn mowers Mulcher
Treadmill Washing machines Secateurs Grass Cutter
