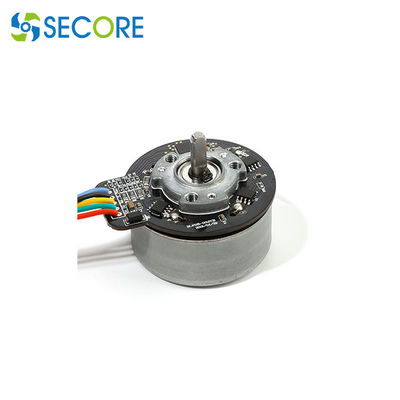

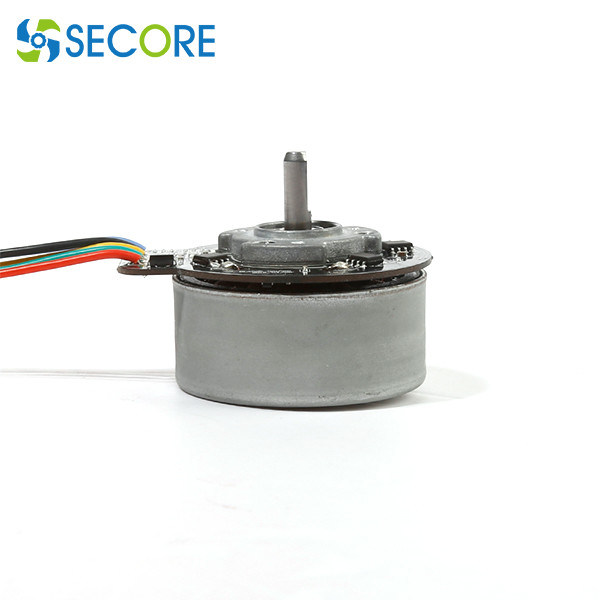

Chair Cursion Massager Outer Rotor BLDC Massager Motor 16.8V Torque 0.16N.m

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-5022O

Detail Information

Speed: 300rpm Or Customized Diameter * Length: 50*22mm
Power: 25W Torque: 0.16N.m
Keyword: Outrunning Brushless Dc Motor, Motor Brushless, Brushless Motor With Controller Typical Application: Fascia Gun, Massage Gun, Electric Fan, Chair Cursion Massager
High Light:

16.8V Massager Motor

,

0.16N.m Torque Massager Motor

,

16.8V Outer Rotor BLDC Motor

Product Description

Non-Standard High Torque BLDC Motor, EC Motor For Chair Cursion Massager



Quick description of this Brushless Outer Rotor BLDC Motor:



•Model:BLS50 series
•Voltage:12V, 16.8V 24V
•Torque:0.16 N.m
•Power: 50-70 W
•Speed: 3500-3800 RPM

•Low Noise, long life, high durability





Model # Rated voltage No load Power at no load max power stall Protection Current Eccentricity design
(V) (rpm) (W) (W) (kg.cm) (A) (mm)
BL5022O-V1 12 3500~3800 3~4 50 7 7~8 5
BL5022O-V2 16.8 3500~3800 4~5 60 7.5 7~8 5
BL5022O-V3 24 3500~3800 6~7 70 8 7~8 5



More models we make for massage gun:



Chair Cursion Massager Outer Rotor BLDC Massager Motor 16.8V Torque 0.16N.m 0



What are the Advantages of Brushed and Brushless DC Motors?



Brushed

  1. Low overall construction costs;
  2. Can often be rebuilt to extend life;
  3. Simple and inexpensive controller;
  4. Controller not needed for fixed speed;
  5. Ideal for extreme operating environments.



Brushless

  1. Less overall maintenance due to lack of brushes;
  2. Operates effectively at all speeds with rated load;
  3. High efficiency and high output power to size ratio;
  4. Reduced size with far superior thermal characteristics;
  5. Higher speed range and lower electric noise generation.



Production technology and production line



Chair Cursion Massager Outer Rotor BLDC Massager Motor 16.8V Torque 0.16N.m 1



↑ Lean production line to achieve flexibility, small unit production and low production costs,

short lead time



Chair Cursion Massager Outer Rotor BLDC Massager Motor 16.8V Torque 0.16N.m 2

 Self-developed production testing equipment and measuring equipment

Chair Cursion Massager Outer Rotor BLDC Massager Motor 16.8V Torque 0.16N.m 3

 Sample manufacturing line for training employees



Production capacity



  1. 25 lean production lines (and continue to expand and upgrade automated production lines);
  2. It has a monthly production capacity of 3 million units and continues to grow;
  3. Standards and general strategies for parts and process equipment;
  4. The versatility of the motor production line and tooling equipment;
  5. Self-developed general fixtures and process equipment;
  6. Lean production;
  7. Billboard material management;
  8. Error-proofing measures for assembling machine molds (Poke Yoke);
  9. The unitized manufacturing concept of lean assembly line;
  10. Strict control of process manual and QC control plan



some of Our customers



Chair Cursion Massager Outer Rotor BLDC Massager Motor 16.8V Torque 0.16N.m 4



Brushless DC Motor-Solution in Areas of expertise



Secore Motors are Widely Used For ventilation system ,heat dissipation system, temperature control system, thermal insulation system ,irrigation system.
