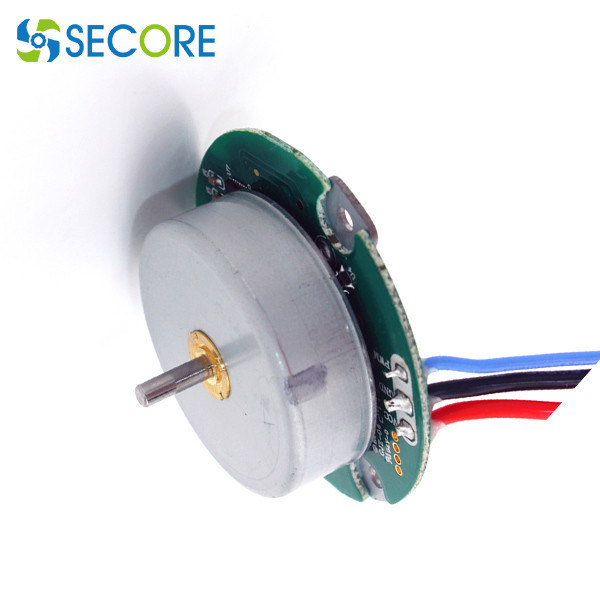

Massager Fascia Gun 18V Micro BLDC Motor With External Rotor 15000rpm Speed

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong, China Brand Name: SECORE
Certification: CE ROHS Model Number: BLS3717O

Detail Information

Speed: 10000rpm Or Customized Rated Voltage: 12V Or As Request
Rated Torque: 150g.cm Or As Request Feature: Explosion-proof, Drip-proof
Continuous Current: 1.6A Commutation: Brushless BLDC
Keyword: High Speed BLDC Fan Motor, Fan Motor Solution, Cleaner BLDC Motor Typical Application: Vacuum Cleaner, Electric Fan, Air Cleaner, Air Purifier, Medical Apparatus
High Light:

18V Micro BLDC Motor

,

External Rotor Micro BLDC Motor

,

18V external rotor motor

Product Description

15000rpm High Speed 18V External Rotor Motor BLDC For Massager Fascia Gun



Main features:



Dimensions: φ37.0mm* 17.0mm height

Equip with Built-in driver or controller optional

PWM pulse wide speed range

Clockwise/counter-clockwise rotation

FG speed feedback signal

Low EMC / Low EMI / Low noise

Long life: 20000hrs Min. or as request





MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS3717-V1 8V~16V 12V 11876 0.25 10332 1.6 153.9 16.31 1184.8 10.64
BLS3717-V2 8V~26V 18V 18020 0.29 15497 1.79 168.4 26.76 1202.7 10.98
BLS3717-V3 8V~26V 24V 23274 0.34 20481 2.61 253.4 53.24 2111.9 19.28



Massager Fascia Gun 18V Micro BLDC Motor With External Rotor 15000rpm Speed 0




TO BE TAILORED



1. Select the correct voltage, expected performance of the motor

2. Confirm the peak current of the brushless drive.

3. Define the working environment (such as temperature, high humidity, etc.).

4. The requirement of power supply insulation.

5. The outer diameter and height of the motor, the diameter of the output shaft, whether it needs to be equipped with a reducer and other related parts.



If there is no suitable specifications, it can be customized according to actual needs.



Typical Application:



-Office apparatus and medical devices

• Printer, Copier, Projector, Shredder, fax ( paper cutter ), computer peripheral, lifting socket etc.

• breath machine, medical cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,

• Fascia gun, massage chair, treadmill

-Household appliances and personal care

• Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment, eyebrow tweezer, electric threading knife

• Blender, sweeper, window cleaner, small household appliance
