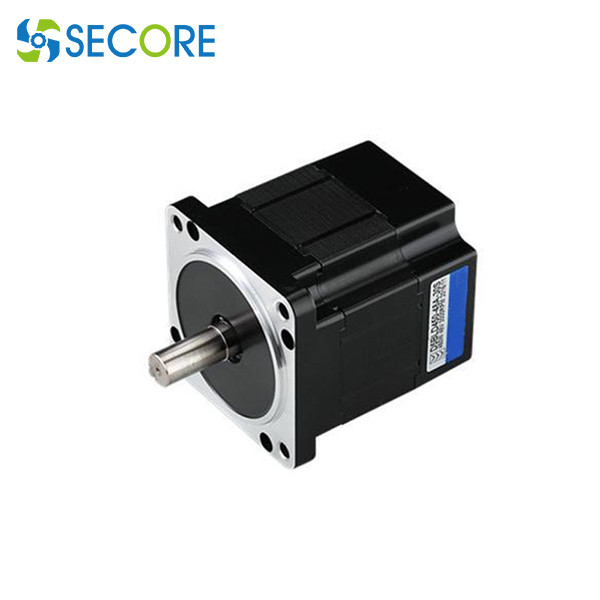

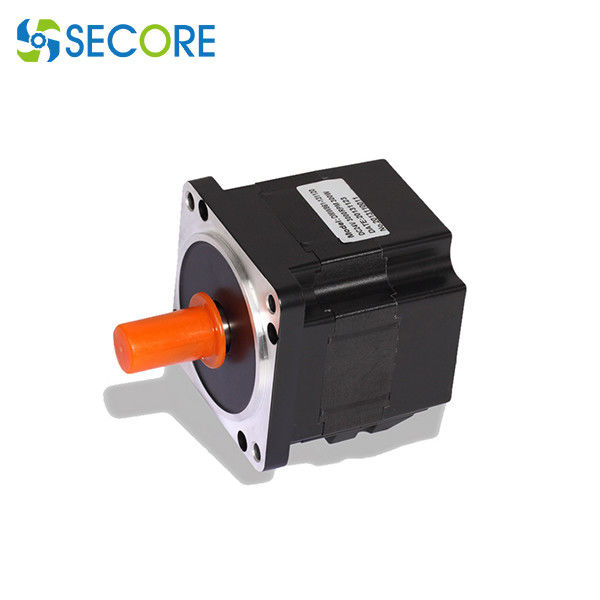

4.12A 24V 3000rpm 200W Three Phase Brushless Motor For Robot

Minimum Order Quantity : 1 Price : Negotiated The Price
Packaging Details : 1pc per carton or as request Delivery Time : 7-10 working days
Payment Terms : T/T, D/A Supply Ability : 7000pcs per month
Place of Origin: China,Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLS86-300W

Detail Information

Rated Speed RPM: 3000 R/Min MOQ: 1 PC
Rated Torque: 0.635 N.m Commutation: Brushless
Rated Power: 200W, 90W 150W 300W 450W Optional Rated Voltage: 12V, 24V, 36V, 48V,310V Optional
Dimension: 86mm / 90mm Diameter Construction: Pernanent Magnet
Product Type: 200W High Efficiency Brushless Dc Motor Typical Application: Robot Arm, Sweeper
High Light:

200W Three Phase Brushless Motor

,

4.12A Three Phase Brushless Motor

,

3000rpm 24V Brushless Motor

Product Description

200W 24V 3000rpm High Efficiency Brushless Motor With Driver/Controller For Robot



Secore Motor specializes in the production and sales of various DC brush & brushless motors, provides one-to-one customer service, and accepts customization of motors with special parameters. Welcome to inquire.



Feature:



1. free maintenance
2. small compact size, light weight
3. low power consumption
4. high efficiency, high C/P, low heat losing
5. high speed and performance
6. lower EMI, lower emission
7. reversible direction, convenient speed adjustment
8. smart controlling



SPECS / Continuous rating for 90W



Model number Voltage V Power W Rated speed
rpm
Rated current
A
Rated torque
N.m
No-load
speed rpm
No-load
current A
Peak Torque
N.m
电机型号 电压 V 功率 W 额定转速 rpm 额定电流 A 额定转矩 N.m 空载转速 rpm 空载电流 A 最大转矩 N.m
BLS86-90W-1230 12 90 3000 9.39 0.29 3300 <0.84A 0.87
BLS86-90W-2430 24 90 3000 4.68 0.29 3300 <0.71A 0.87
BLS86-90W-3630 36 90 3000 3.14 0.29 3300 <0.59A 0.87
BLS86-90W-4830 48 90 3000 2.35 0.29 3300 <0.51A 0.87
BLS86-90W-31030 310 90 3000 0.37 0.29 3300 <0.31A 0.87



SPECS / Continuous rating for 150W



Model number Voltage V Power W Rated speed
rpm
Rated current
A
Rated torque
N.m
No-load
speed rpm
No-load
current A
Peak Torque
N.m
电机型号 电压 V 功率 W 额定转速 rpm 额定电流 A 额定转矩 N.m 空载转速 rpm 空载电流 A 最大转矩 N.m
BLS86-150W-1230 12 150 3000 15.64 0.481 3300 <5.21A 1.44
BLS86-150W-2430 24 150 3000 7.82 0.481 3300 <3.12A 1.44
BLS86-150W-3630 36 150 3000 5.22 0.481 3300 <2.5A 1.44
BLS86-150W-4830 48 150 3000 3.9 0.481 3300 <1.62A 1.44
BLS86-150W-31030 310 150 3000 0.61 0.481 3300 <0.31A 1.44





SPECS / Continuous rating for 200W


Model number Voltage V Power W Rated speed
rpm
Rated current
A
Rated torque
N.m
No-load
speed rpm
No-load
current A
Peak Torque
N.m
电机型号 电压 V 功率 W 额定转速 rpm 额定电流 A 额定转矩 N.m 空载转速 rpm 空载电流 A 最大转矩 N.m
BLS86-200W-1230 12 200 3000 20.82 0.635 3300 <6.21A 1.92
BLS86-200W-2430 24 200 3000 10.41 0.635 3300 <4.12A 1.92
BLS86-200W-3630 36 200 3000 6.93 0.635 3300 <2.51A 1.92
BLS86-200W-4830 48 200 3000 5.2 0.635 3300 <1.62A 1.92
BLS86-200W-31030 310 200 3000 0.8 0.635 3300 <0.41A 1.92





Diagram





4.12A 24V 3000rpm 200W Three Phase Brushless Motor For Robot 0
