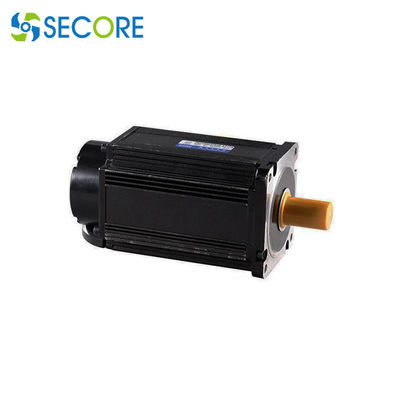

3000R/ Min Brushless DC Electric Motor 750W 36V 48V With Encoder Gearbox

Minimum Order Quantity : 1 Price : Negotiated The Price
Packaging Details : 1pc per carton or as request Delivery Time : 7-10 working days
Payment Terms : T/T, D/A Supply Ability : 7200pcs per month
Place of Origin: China,Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLS86-750W

Detail Information

Rated Speed RPM: 3000R/ Min MOQ: 1 Piece
Rated Torque: 0.635 N.m Commutation: Brushless
Rated Power: 750W, 90W, 150W, 200W, 300W, 450W Optional Rated Voltage: 12V, 24V, 36V, 48V, 310V Optional
Dimension: 86mm / 90mm Diameter * 130mm Length Construction: Pernanent Magnet
Product Type: 200W High Efficiency Brushless Dc Motor Typical Application: Robot Arm, Sweeper
High Light:

3000R/ Min Brushless DC Electric Motor

,

Brushless DC Electric Motor 750W

,

Encoder Gearbox Bldc Gear Motor

Product Description

750W 36V 48V High Quality Brushless Motor, EC Motor With Encoder, Gearbox, Controller



Secore Motor specializes in the production and sales of various DC brush & brushless motors, provides one-to-one customer service, and accepts customization of motors with special parameters. Welcome to inquire.



Feature:



1. free maintenance
2. small compact size, light weight
3. low power consumption
4. high efficiency, high C/P, low heat losing
5. high speed and performance
6. lower EMI, lower emission
7. reversible direction, convenient speed adjustment
8. smart controlling



SPECS / Continuous rating for 750W



Model number Voltage V Power W Rated speed
rpm
Rated current
A
Rated torque
N.m
No-load
speed rpm
No-load
current A
Peak Torque
N.m
电机型号 电压 V 功率 W 额定转速 rpm 额定电流 A 额定转矩 N.m 空载转速 rpm 空载电流 A 最大转矩 N.m
BLS86-750W-2430 24 750 3000 39.07 2.385 3300 <9.23A 7.17
BLS86-750W-3630 36 750 3000 26.05 2.385 3300 <8.2A 7.17
BLS86-750W-4830 48 750 3000 19.54 2.385 3300 <6.51A 7.17
BLS86-750W-31030 310 750 3000 3.03 2.385 3300 <1.62A 7.17



Diagram



3000R/ Min Brushless DC Electric Motor 750W 36V 48V With Encoder Gearbox 0





Instantaneous maximum torque: the maximum torque of the motor starting and the instantaneous impact load; when this torque is exceeded, it will cause the overcurrent protection of the driver and cause the shutdown;



Short-term operating area: when the motor rotates at different speeds, it can run at a short speed within this torque range. It will heat the motor if long time running, which may cause burn-in or driving the overheating protection, leading to shutdown;



Rated operating torque: the rated torque of the motor at different speeds, which can run for a long time under this torque;



Continuous operating area: at different speeds, the motor runs continuously in this corresponding interval;
