42mm Dia Brushless DC Motor Square Shape 5500RPM For Cd Player

Name: 42mm Dia Brushless DC Motor Square Shape 5500RPM For Cd Player
Brand: SECORE
SKU: SC-42S01-24V
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (102 reviews)

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	20PC per carton or as request	Delivery Time :	7-10 working days
Payment Terms :	T/T, D/A	Supply Ability :	6000pcs per month

Place of Origin:	CHINA	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	SC-42S01-24V

Detail Information
MOQ:	100PCS	Nominal Voltage:	24V
Free Load Speed RPM:	5500RPM ±10%	Free Load Current:	0.3A Max
Poles:	8	Phase:	3
Torque Constant:	0.039 N.m/A	Back EMF Constant:	4.1V/kRPM
Rated Speed:	4000rpm±10%	Rated Torque:	0.0625N.m
High Light:	42mm Dia Brushless DC Motor , Cd Player Brushless DC Motor , 5500RPM Brushless Dc Gear Motor

Product Description

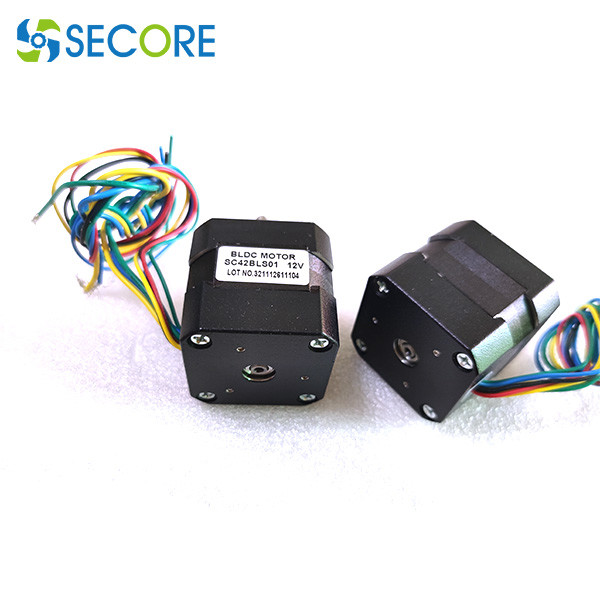

Square Shape 42mm Diameter Brushless Motor Ec Motor For Cd Player

SPECS / Continuous rating for12V & 24V brushless motor

Model number	SC42BLS01
Poles	8
Phase to phase resistance	1.8 OHMS
Free load speed	5500RPM ±10%
Free load current	0.3A Max
Nominal voltage	12 VDC
Rated speed	4000RPM ±10%
Rated torque	0.0625N.m
Output power	26W
Torque constant	0.042 N.m/A
Back EMF constant	4.26V/kRPM
Insulation Class	B

42mm Dia Brushless DC Motor Square Shape 5500RPM For Cd Player 0

42mm Dia Brushless DC Motor Square Shape 5500RPM For Cd Player 1

42mm Dia Brushless DC Motor Square Shape 5500RPM For Cd Player 2

Application
