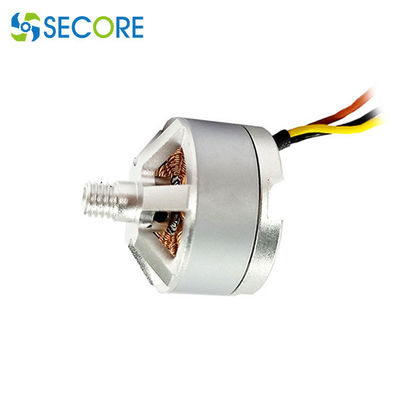

Brushless Outer Rotor BLDC Motor 10W 1800kv Aircraft Drone Bldc Motor

Place of Origin:	China	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	BLS-2316O

Detail Information
KV:	1800rpm+/-10%	Output Power:	10W
Rated Voltage:	7.4V	Commutation:	Outerl Rotor Brushless
Rated Current:	2A	Rated Torque:	5N.m
Product Name:	7.4V Brushless Motor, 1500KV Drone Brushless Motor	Typical Application:	Hair Dryer, Fan, Massager, Personal Care
High Light:	Brushless Outer Rotor BLDC Motor , 10W Outer Rotor BLDC Motor , 1800kv Aircraft Drone Bldc Motor

Product Description

Manufacturer Direct Supply 1800kv External Rotor Model Aircraft Drone Bldc Motor

Specification of this Brushless DC out runner Motors :

•Model #: BLS2316O
•Voltage: 7.4V
•KV: 1800RPM +/-10%

•Low Noise, long life, high durability

Dimension:

Brushless Outer Rotor BLDC Motor 10W 1800kv Aircraft Drone Bldc Motor 0

Technical requirement

1. The surface of the motor is aluminized white, without rust, burrs and other defects.

2. The motor adopts a 12-slot 14-pole structure scheme, star-connected outgoing wires, and a length of 55mm.

3. Motor parameters 1800KV.

4. The motor bearing adopts imported bearing NMB, and the enameled wire adopts the temperature resistance of 155 degrees.

5. The magnets are sintered NdFeB magnets, preferably N45H.

6. The rotor of the motor needs to be dynamically balanced, within 5mg.
