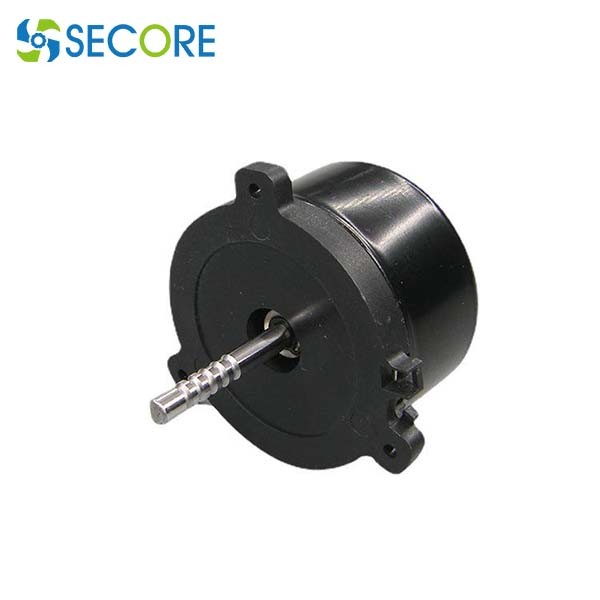

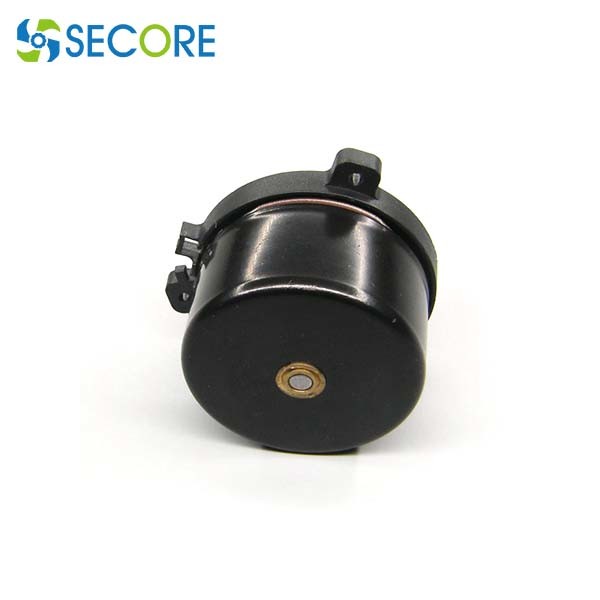

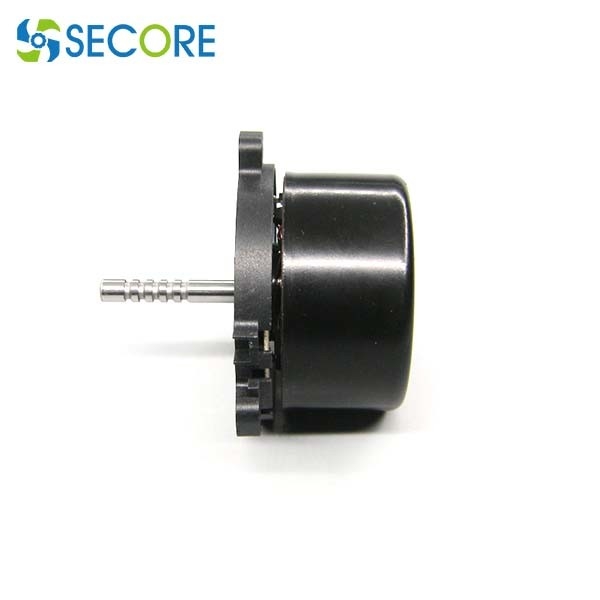

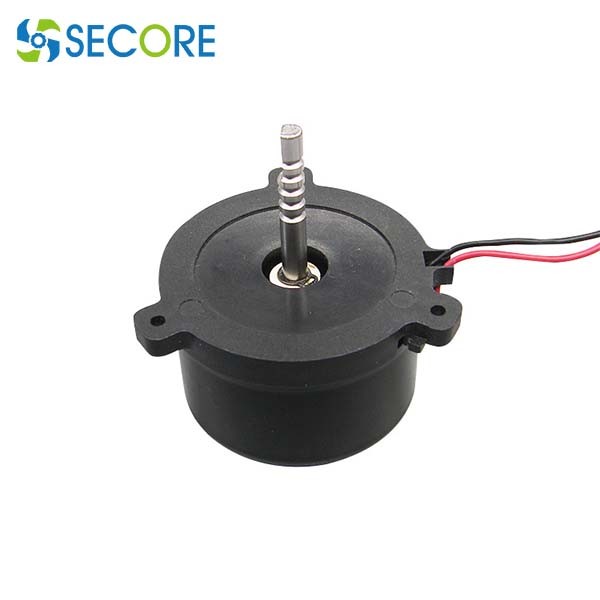

Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	50pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	China	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	BLS-5034O

Detail Information
No-load Speed:	5000RPM	Rated Speed:	4200rpm
Rated Voltage:	12V	Rated Current:	1A
Rated Torque:	0.02N.m	Commutation:	Outerl Rotor Brushless
Product Name:	50mm Round Bldc Motor, Dc Fan Motor	Typical Application:	Exhaust Fan, Ventilating Fan, Ventilator
High Light:	Ventilating Fan Outer Rotor BLDC Motor , 20W Outer Rotor BLDC Motor , 5000RPM Round Brushless Dc Motor

Product Description

Ventilating Fan Bldc Motor Round Brushless Dc Motor D54mm For Exhaust Fan

Specification of this Brushless DC out runner Motors :

•Model #: BLS5034O
•Voltage: 12V
•Rated Torque: 0.02N.m
•Rated Power: 12-20W
•Speed: 5000RPM

•Low Noise, long life, high durability

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY			STALL
MODEL	VOLTAGE	SPEED RPM	CURRENT A	SPEED RPM	TORQUE gf.cm	CURRENT A	TORQUE gf.cm	CURRENT A
BLS-5034O	12V	5000	0.3	4200	200	1	1250	4.6

Dimension:

Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W 0

Performance curve:

Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W 1

Outer rotor design

Ventilating Fan Outer Rotor BLDC Motor D54mm 5000RPM Round 20W 2

In an outer rotor design, the rotor surrounds windings located in the motor core. The magnets in the rotor trap the heat of the motor internally and do not allow it to escape from the motor. Motors of this design operate at lower current ratings and have low cogging torque.
