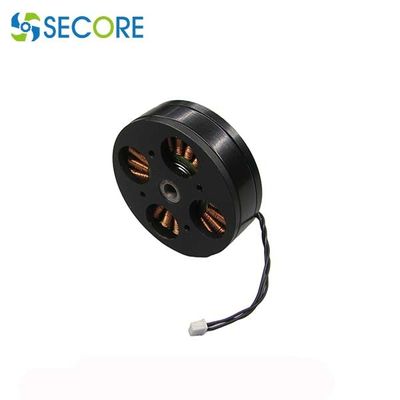

11.1V Brushless Dc Motor Round 46mm Ec 0.36A For 3 Axis Gimbal

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-4614O

Detail Information

No-load Speed: 1000RPM Rated Speed: 880rpm
Rated Voltage: 11.1V Or Per Request Rated Current: 0.36A
Rated Torque: 320g.cm Motor Size: 46mm*14mm
Product Name: 11.1V Round 46mm Brushless Dc Motor Typical Usage: Three Axis Gimbal, Stabilizer, Ptz Cam
Noise: < 45dB Protection: Over-heat, Over-current
Bearing: Ball Bearing Controlling: CW/CCW, PWM, Start/Cease, FG Feedback
High Light:

11.1V Brushless Dc Motor

,

Round Ec Brushless Dc Motor

,

0.36A Bldc Ceiling Fan Motor

Product Description

Factory Direct Supply Brushless Dc Motor 11.1V Low Noise Round 46mm Ec Motor For 3-Axis Gimbal



Specification of 4614 Brushless DC out runner Motors :



•Model #: BLS-4614O
•Voltage: 11.1V or as per request
• Bearing: Ball bearing

• Speed: 800-1200 RPM

•Low Noise, long life, high durability



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED
RPM
CURRENT
A
SPEED
RPM
TORQUE
gf.cm
CURRENT
A
TORQUE
gf.cm
CURRENT
A
BLS-4614O 11.1 1040 0.09 880 320 0.36 2080 1.8




Performance curve:



11.1V Brushless Dc Motor Round 46mm Ec 0.36A For 3 Axis Gimbal 0


Dimension:



11.1V Brushless Dc Motor Round 46mm Ec 0.36A For 3 Axis Gimbal 1
