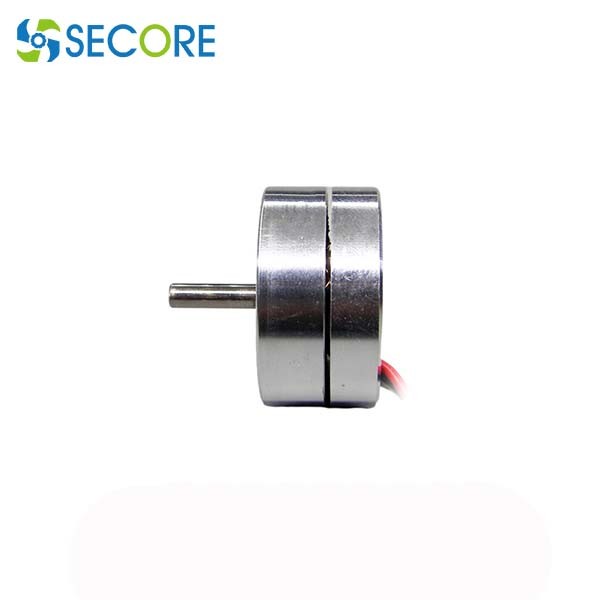

Car Cooling Cushion Sensorless Bldc Motor 5000rpm 35mm Round Brushless Dc Motor

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 50pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-3519O

Detail Information

No-load Speed: 6250RPM Rated Speed: 5000rpm
Rated Voltage: 12V Or Per Request Rated Current: 0.95A
Rated Torque: 193g.cm Bearing: Ball Bearing
Controlling: CW/CCW, PWM, Start/Cease, FG Feedback Motor Dimension: 35*19mm
Product Name: 12V 35mm Round Brushless Dc Motor Typical Usage: Auto Parts, Car Cooling Cushion
Max Noise: < 46dB Protection: Over-heat, Over-current
High Light:

Cooling Cushion Sensorless Bldc Motor

,

5000rpm Sensorless Bldc Motor

,

35mm Round Brushless Dc Motor

Product Description

5000rpm High Speed Car Cooling Cushion Motor Round 35mm Brushless Dc Motor



Specification of 3519 Brushless DC out runner Motors :



• Model #: BLS-3519O
• Voltage: 12V or as per request
• Bearing: Ball bearing

• Speed: 4000-7000 RPM

• Low Noise, long life, high durability



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED
RPM
CURRENT
A
SPEED
RPM
TORQUE
gf.cm
CURRENT
A
TORQUE
gf.cm
CURRENT
A
BLS-3519O 12 6250 0.17 5000 193 0.95 860 4



Dimension:



Car Cooling Cushion Sensorless Bldc Motor 5000rpm 35mm Round Brushless Dc Motor 0

Performance curve:



Car Cooling Cushion Sensorless Bldc Motor 5000rpm 35mm Round Brushless Dc Motor 1

Car Cooling Cushion Sensorless Bldc Motor 5000rpm 35mm Round Brushless Dc Motor 2



Electrical pin specification



Car Cooling Cushion Sensorless Bldc Motor 5000rpm 35mm Round Brushless Dc Motor 3
