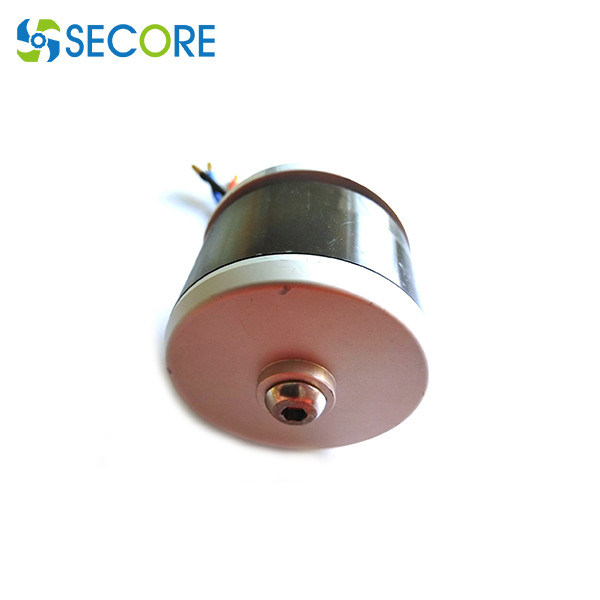

800W Outrunner Brushless Motor For Garden Machines, 36V Electric Tool Motor

Minimum Order Quantity : 50 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, L/C, D/P Supply Ability : 13000PCS / month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: ISO9001, RoHS Model Number: BLS-6353

Detail Information

Working Voltage: 36V KV Value: 270KV
Max Current: 53A Rated Torque: 0.8N.m ( 7lb.in, 113oz.in )
Motor Size: 63*53mm Max Torque: 2.1N.m
Max Power: 1850W Application: Lawn Mower, Electric Chain Saw, Hedge Trimmer
High Light:

800W Outrunner Brushless Motor

,

Garden Machines Outrunner Brushless Motor

,

36V Electric Tool Motor

Product Description

800W Outrunner Brushless Motor For Garden Machines,36V Electric Tool Motor



Secore external rotor bushless motor 6353 Main features for reference:



Model number VOLTAGE KV NO LOAD AT MAXIMUM EFFICIENCY Stall Weight
Nominal constant rpm/v SPEED CURRENT POWER CURRENT TORQUE POWER
Volts rpm/v ±10% r/min mA w A N.m W kg
BLS-6353O 36 270 9720 2200 650 52 2.1 1850 0.52
BLS-6353O 48 200 9680 2100 820 52 2.6 2250 0.52



Outline drawing for model BLS-6353 trimmer motor:



800W Outrunner Brushless Motor For Garden Machines, 36V Electric Tool Motor 0

Advantages:



Its features with the advantages of large torque, low iron loss, low heat generation, and high efficiency.

Using compound processing machine high-precision one-time forming shell;

N45SH magnetic steel, original imported NSK bearings;

Kawasaki 0.2/1200 silicon steel sheet;

High-quality materials;

Original Loctite glue;

High temperature 200 degrees oxygen-free copper enameled wire;

Advanced production equipment;

Perfect product testing methods;

Innovative production technology;

Quality assurance system to ensure the superior quality of products.
